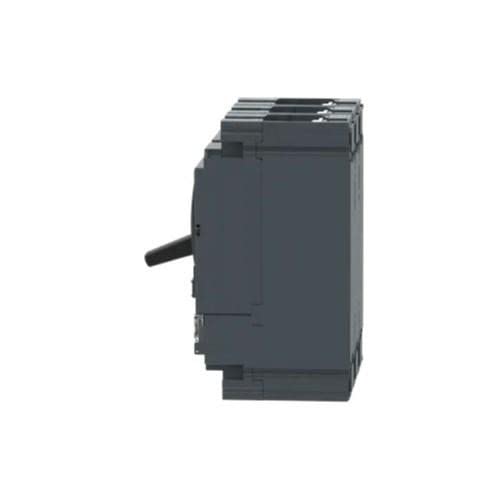

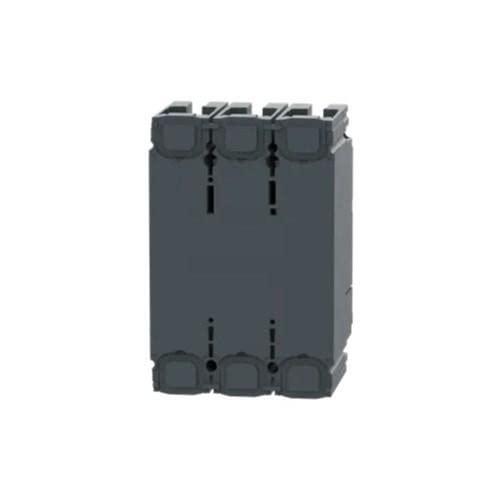

160A 3-Pole MCCB – Schneider Electric EasyPact CVS160F LV525302, Fixed Thermal-Magnetic Trip Unit, 36kA Breaking Capacity @ 415V AC
GH₵2,800.00
GH₵3,000.00
Pickup currently not available
Short Description:
Heavy-duty 3-pole molded case circuit breaker rated at 160A with 36kA breaking capacity. Includes a fixed thermal-magnetic trip unit for superior protection in industrial and commercial low-voltage systems.
Full Product Description:
The Schneider Electric LV525302 is a robust and reliable 3-pole MCCB from the EasyPact CVS160F series, designed for effective protection of low-voltage circuits. With a rated operational current of 160A and a breaking capacity of 36kA at 415V AC, this breaker delivers high performance under fault conditions.
It features a fixed thermal-magnetic trip unit (TM-D), offering fast and accurate protection against overloads and short circuits. The compact design and compliance with IEC 60947-2 standards make it suitable for a wide range of commercial, industrial, and infrastructure applications.
Technical Specifications:
| Attribute | Specification |
|---|---|
| Product Code | LV525302 |
| Series | EasyPact CVS160F |
| Rated Current (In) | 160A |
| Frame Size | 160A |
| Poles | 3P (Three-Pole) |
| Trip Unit | Fixed Thermal-Magnetic (TM-D) |
| Breaking Capacity | 36kA @ 415V AC |
| Rated Insulation Voltage (Ui) | 750V |
| Utilization Category | Category A |
| Mounting Type | Fixed |
| Standards | IEC 60947-2 |
| Application | Circuit Protection in Low Voltage Systems |
Applications:
✔ Main power distribution boards
✔ Industrial control panels
✔ Generator and transformer protection
✔ Sub-distribution systems
