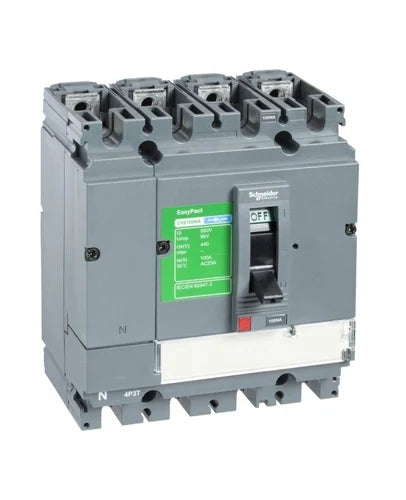

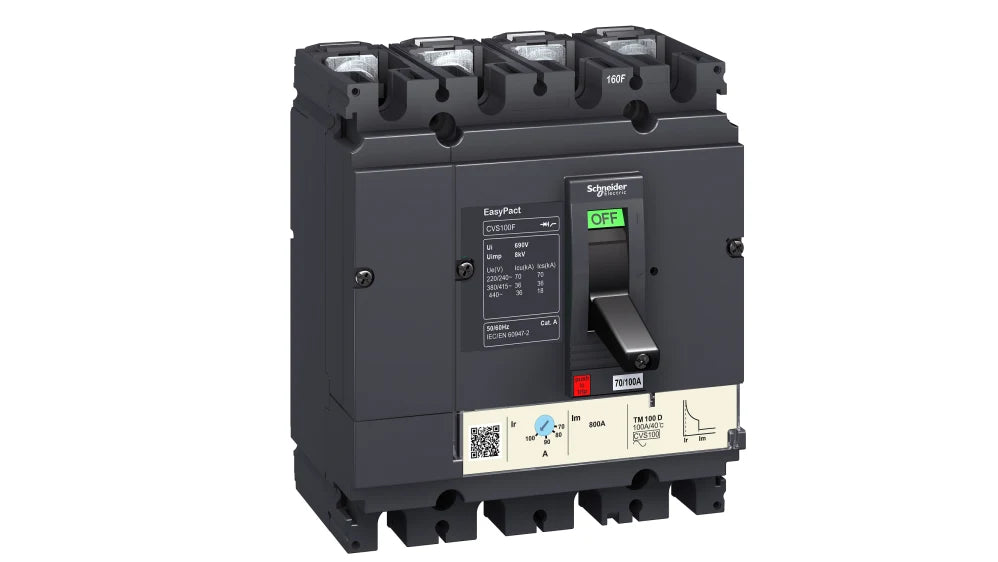

100A 4-Pole MCCB – Schneider Electric EasyPact CVS100B LV510317, TM-D Trip Unit, 25kA Breaking Capacity @ 415V AC
GH₵2,300.00
GH₵2,750.00
Pickup currently not available
Short Description:
Reliable 4-pole molded case circuit breaker rated at 100A with a 25kA breaking capacity at 415V AC. Designed with a fixed thermal-magnetic trip unit and 3D protection for dependable low-voltage power distribution.
Full Product Description:
The Schneider Electric LV510317 is a robust 4-pole MCCB from the EasyPact CVS100B series, offering reliable protection for low-voltage electrical installations. With a rated current of 100A, a fixed thermal-magnetic (TM-D) trip unit, and a 25kA breaking capacity at 415V AC, this MCCB ensures effective protection against overloads and short circuits.
Featuring a 4P 3D configuration (three protected poles plus one neutral), the LV510317 is ideal for applications requiring neutral monitoring in three-phase systems. Its compact design, fixed mounting, and compliance with IEC 60947-2 make it suitable for a wide range of commercial and light industrial applications.
Technical Specifications:
| Attribute | Specification |
|---|---|
| Product Code | LV510317 |
| Series | EasyPact CVS100B |
| Rated Operational Current (In) | 100A |
| Frame Size | 100A |
| Poles | 4P (4-Pole, 3D) |
| Trip Unit | Fixed Thermal-Magnetic (TM-D) |
| Breaking Capacity | 25kA @ 415V AC |
| Rated Insulation Voltage (Ui) | 750V |
| Mounting Type | Fixed |
| Utilization Category | Category A |
| Compliance Standard | IEC 60947-2 |
| Protection | Overload & Short Circuit |
Applications:
✔ Power distribution with neutral monitoring
✔ Sub-panels in commercial buildings
✔ HVAC and lighting systems
✔ Generator and transformer feeders
