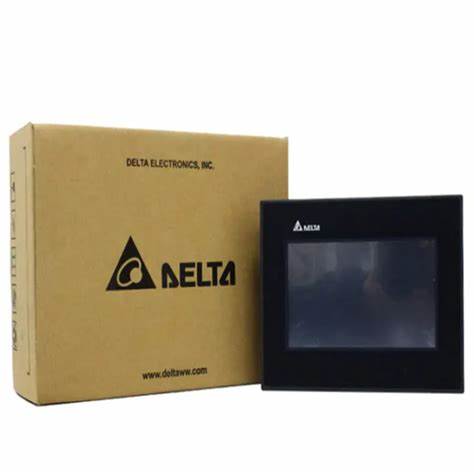

The Delta DOP-107DV is a 7-inch Human Machine Interface (HMI) from the DOP-100 Basic Series, designed for intuitive control and monitoring in industrial automation systems. With a high-resolution TFT display, multiple communication ports, and robust build, it’s ideal for a wide range of machinery and process control applications.

Key Features:

• Display: 7" TFT LCD, 800 × 480 resolution, 16-bit color
• Processor: ARM Cortex-A8, 800 MHz
• Memory: 256 MB Flash ROM, 256 MB RAM

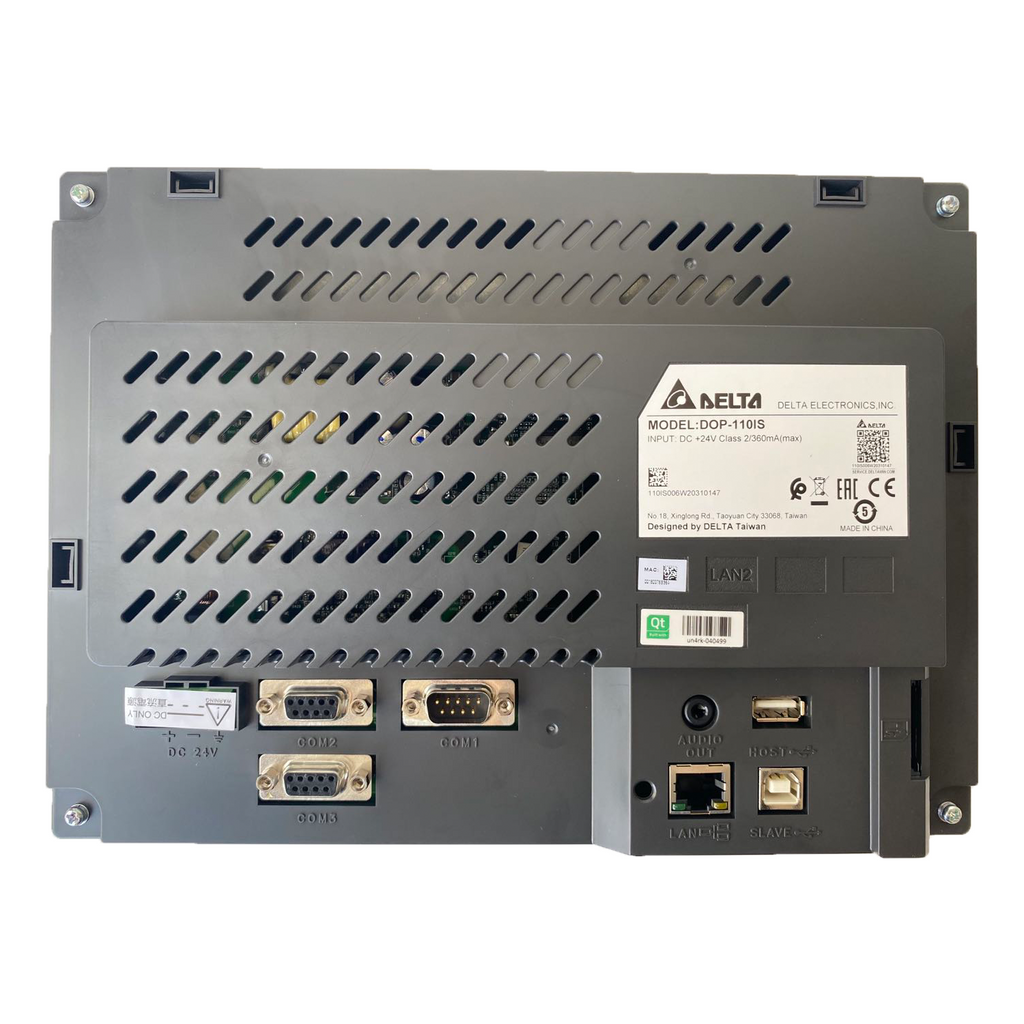

• Communication Ports:
• COM1: RS-232 / RS-485
• COM2: RS-422 / RS-485
• Ethernet: 1 port (10/100 Mbps)
• USB: 1 Host, 1 Slave (USB 2.0)
• Power Supply: 24V DC ±15%, 8.8W power consumption
• Protection Rating: IP65 front panel (NEMA 4X)
• Mounting Dimensions: 196.9 mm × 142.9 mm
• Operating Temperature: 0°C to +50°C

Highlights:

• Supports Modbus RTU/TCP for seamless integration
• User-friendly interface with wide viewing angle
• Compact and rugged design for harsh environments
• Compatible with DIAStudio and DOPSoft for configuration
