CHINT NXZM-400S/4B 400A 4-Pole Automatic Transfer Switch – Industrial Grade, 400V, CE Certified
GH₵16,500.00
GH₵19,000.00
Pickup currently not available
Overview:

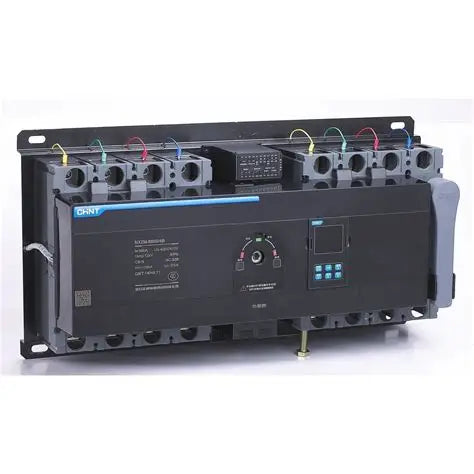

The NXZM-400S/4B is a compact, high-performance automatic transfer switch designed to ensure seamless power transition between utility and backup sources. With a 400A rating and intelligent controller, it’s built for industrial, commercial, and large residential applications requiring reliable power continuity.
Technical Specifications:
- Brand: CHINT
- Model: NXZM-400S/4B
- Rated Current: 400A
- Poles: 4-pole
- Rated Voltage: 400VAC / 415VAC
- Control Voltage: 230VAC / 240VAC
- Breaking Capacity: 105kA
- Transfer Time: 3.5 seconds (±10%)
- Mechanical Endurance: 4,000 operations
- Electrical Endurance: 1,500 operations
- Mounting: Surface-mounted
- Connection: Flat-facing busbars
- Operating Temperature: -5°C to +40°C
- Certifications: IEC 60947-6-1, CE, CB, KEMA
Key Features:
- Intelligent controller with integrated or split installation
- Automatic/manual switching modes
- Adjustable transfer and return delays
- Generator/grid interlock compatibility
- Fire control feedback and linkage
- Protection against phase failure, overvoltage, and undervoltage
Applications:
- Industrial automation systems
- Commercial buildings and data centers
- Backup generator integration
- Power continuity for critical infrastructure
