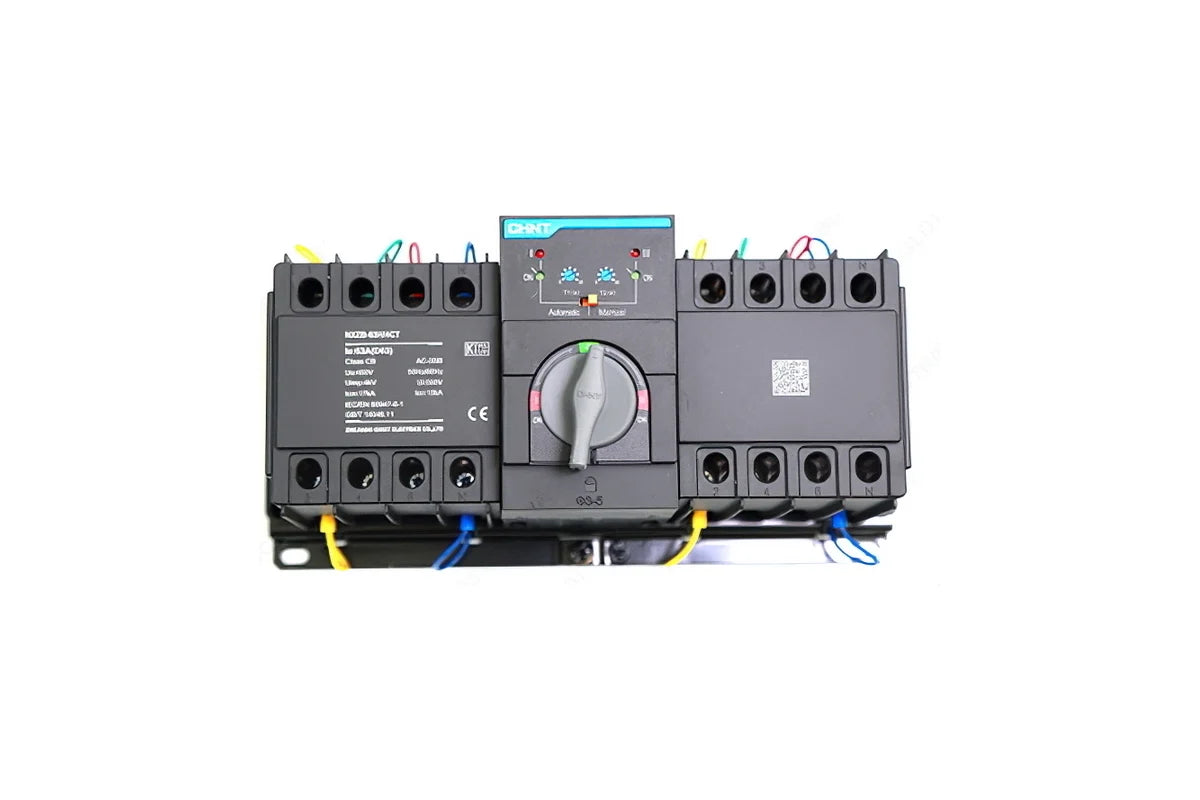

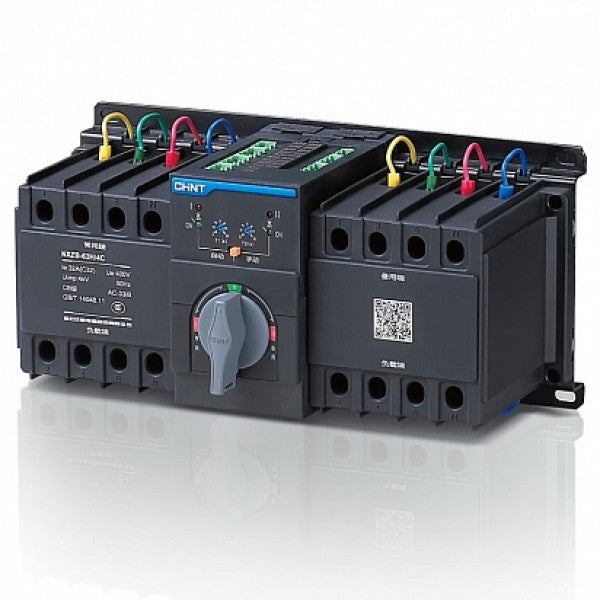

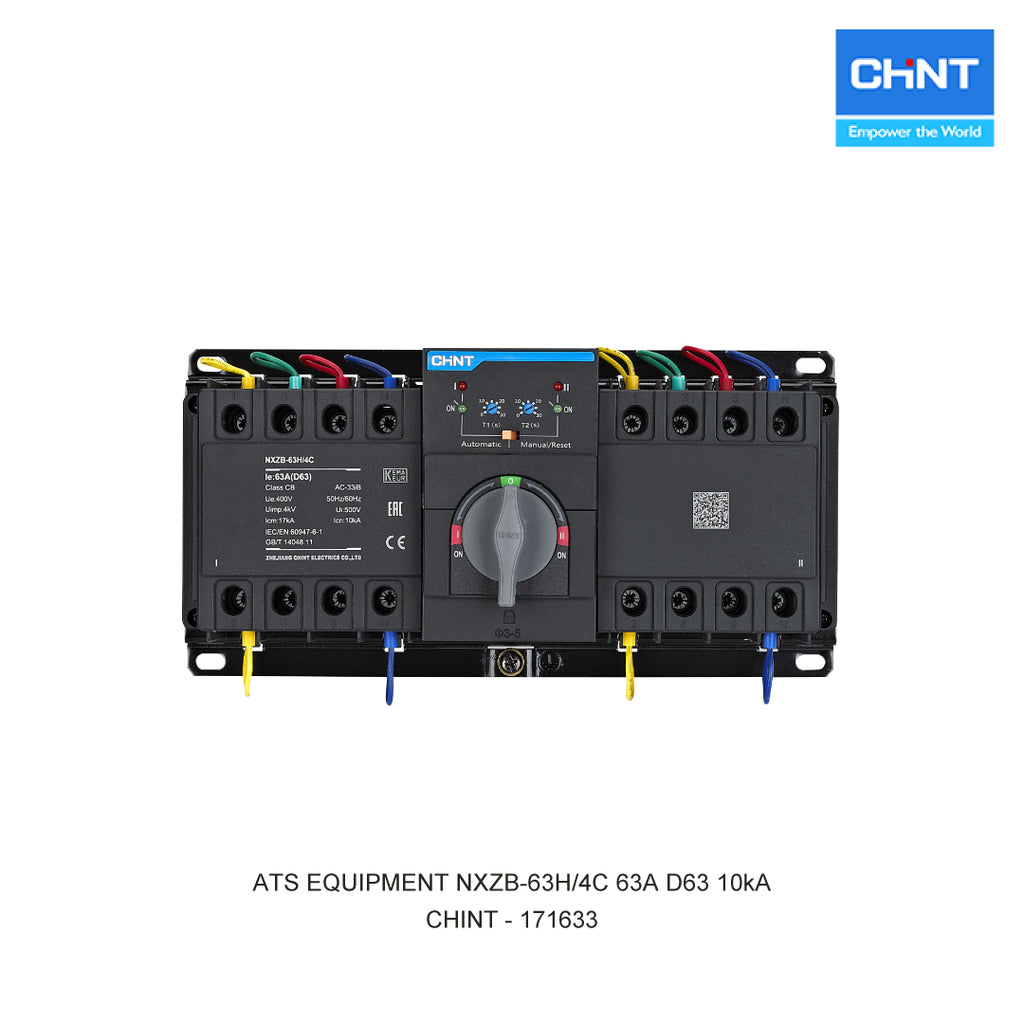

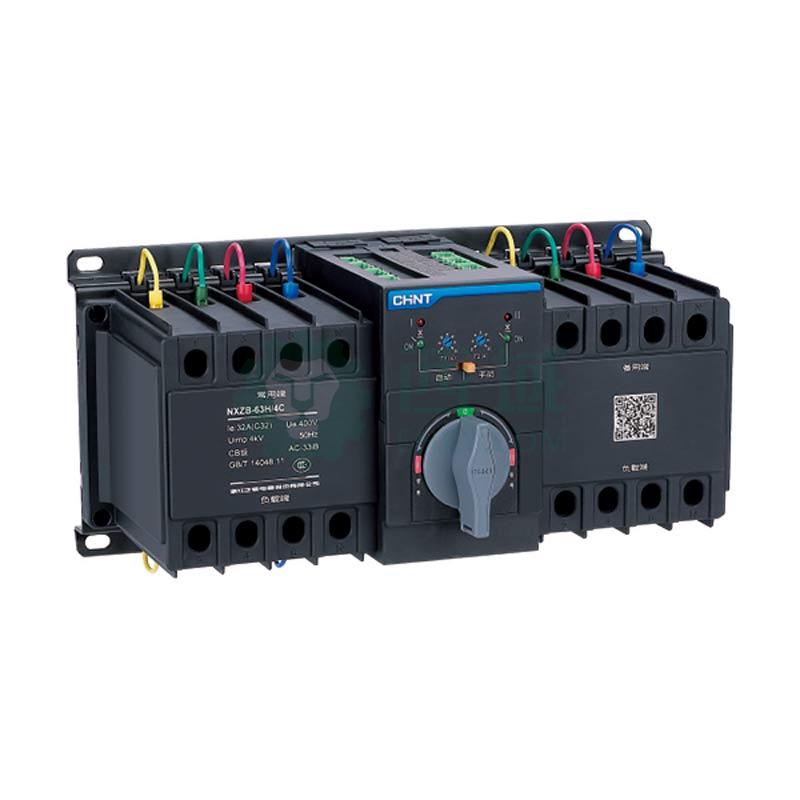

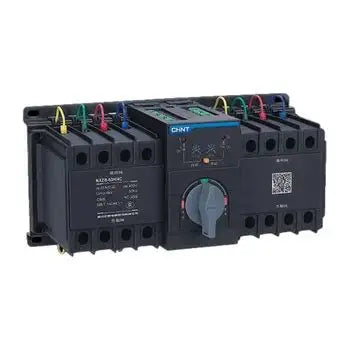

CHINT NXZB-63H/4C 63A D63 4-Pole Automatic Transfer Switch – Compact, Intelligent, 400V, CE Certified
GH₵6,000.00
GH₵7,000.00
Pickup currently not available
Overview:
The NXZB-63H/4C is a compact, motorized automatic transfer switch designed for seamless switching between utility and backup power sources. With a 63A rating and 4-pole configuration, it ensures reliable power continuity in homes, offices, and small commercial setups.
Technical Specifications:
- Brand: CHINT
- Model: NXZB-63H/4C
- Rated Current: 63A
- Poles: 4-pole
- Rated Voltage: 400VAC / 415VAC
- Control Voltage: 230VAC / 240VAC
- Frequency: 50/60Hz
- Breaking Capacity: 10kA
- Making Capacity: 17kA
- Tripping Curve: D63 (C and D types available)
- Transfer Time: ~1.4 seconds (±10%)
- Mechanical Endurance: 10,000 operations
- Electrical Endurance: 3,000 operations
- Mounting: Surface or DIN rail
- Enclosure: Flame-retardant plastic
- Certifications: IEC 60947-6-1, CE, CB, KEMA
Key Features:
- Intelligent controller (C type) with built-in or remote configuration
- Automatic/manual switching modes
- Adjustable transfer and return delays
- Generator/grid interlock compatibility
- Fire control feedback and linkage
- Compact design for panel integration
Applications:
- Residential backup systems
- Small commercial buildings
- Telecom and security systems
- Generator integration for essential loads
