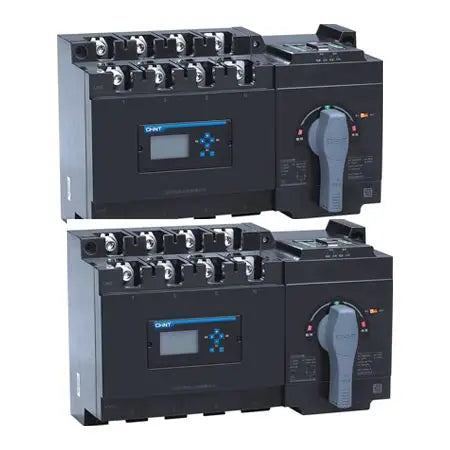

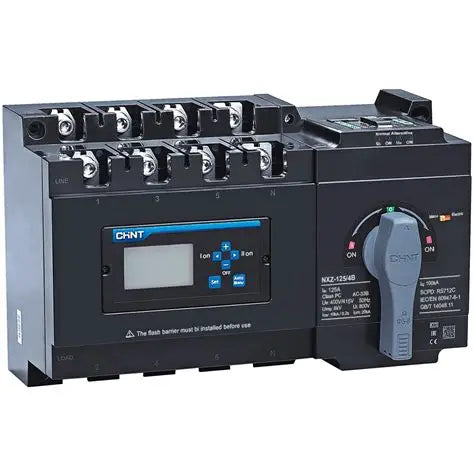

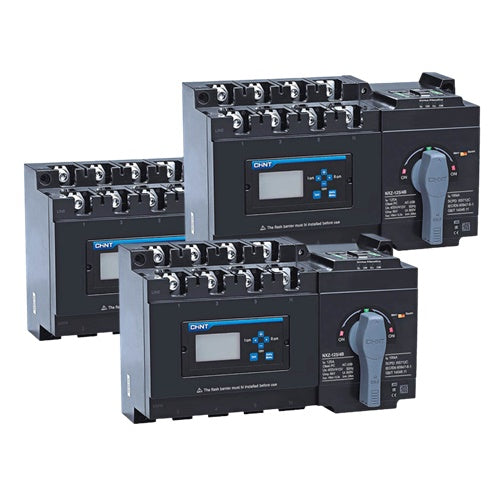

CHINT NXZ-125/4B 125A 4-Pole Automatic Transfer Switch – Compact, Intelligent, 400V, CE Certified
GH₵10,000.00
GH₵12,000.00
Pickup currently not available
Overview:
The NXZ-125/4B is a compact and intelligent automatic transfer switch designed to ensure seamless switching between utility and backup power sources. With a 125A rating and 4-pole configuration, it’s engineered for reliable power continuity in critical systems.
Technical Specifications:
- Brand: CHINT
- Model: NXZ-125/4B
- Rated Current: 125A
- Poles: 4-pole
- Rated Voltage: 400VAC / 415VAC
- Control Voltage: 230VAC / 240VAC
- Frequency: 50/60Hz
- Breaking Capacity: 50kA
- Transfer Time: ≤3 seconds
- Mechanical Endurance: 10,000 operations
- Electrical Endurance: 3,000 operations
- Mounting: Surface or DIN rail
- Enclosure Material: Flame-retardant plastic
- Operating Temperature: -25°C to +70°C
- Certifications: IEC 60947-6-1, CE, CB, KEMA
Key Features:
- Intelligent controller with integrated or split installation
- Automatic and manual switching modes
- Adjustable transfer and return delays
- Generator/grid interlock compatibility
- Fire control feedback and linkage
- Protection against overload, short circuit, overvoltage, undervoltage, and phase failure
Applications:
- Residential backup systems
- Small commercial buildings
- Telecom and security systems
- Generator integration for essential loads
