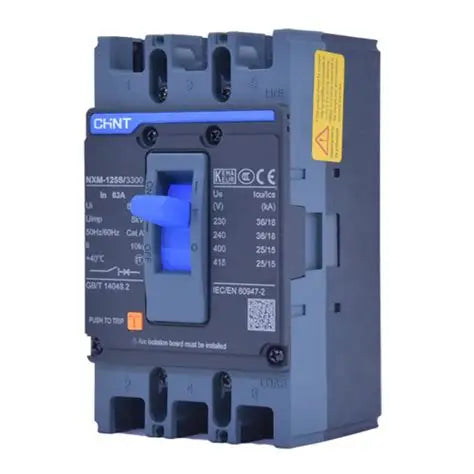

Chint NXM-125S/3300 MCCB | 100A | 3-Pole | 36kA | Thermal-Magnetic | 690V AC
GH₵550.00
GH₵650.00
Pickup currently not available
🔹 Product Overview
The Chint NXM-125S/3300 100A MCCB is a high-quality molded case circuit breaker designed to deliver superior protection for power distribution systems. With a 36kA breaking capacity and robust thermal-magnetic trip unit, it provides reliable performance in industrial and commercial settings.
🔹 Technical Specifications
| Feature | Details |
|---|---|
| Rated Current (In) | 100 Amps |
| Frame Size | 125A |
| Poles | 3-Pole |
| Rated Operational Voltage (Ue) | 690V AC |
| Rated Insulation Voltage (Ui) | 800V |
| Breaking Capacity (Icu @ 400V AC) | 36kA |
| Trip Unit Type | Thermal-Magnetic (Fixed) |
| Mounting Style | Fixed, panel mount |
| Standard Compliance | IEC/EN 60947-2 |
| Frequency | 50/60Hz |
🔹 Key Features
-
Compact 3-pole MCCB with high fault protection
-
Fixed thermal-magnetic trip unit for overload and short-circuit protection
-
Durable mechanism with up to 20,000 mechanical operations
-
Universal terminals for simplified connection
-
Trusted Chint reliability and performance
🔹 Ideal Applications
-
Electrical panels and switchboards
-
Machinery control and protection
-
Commercial buildings and office complexes
-
Generators and power backup systems
-
Industrial motor loads
🔹 What’s in the Box?
-
1 × Chint NXM-125S/3300 100A MCCB
-
Installation manual (digital available on request)
