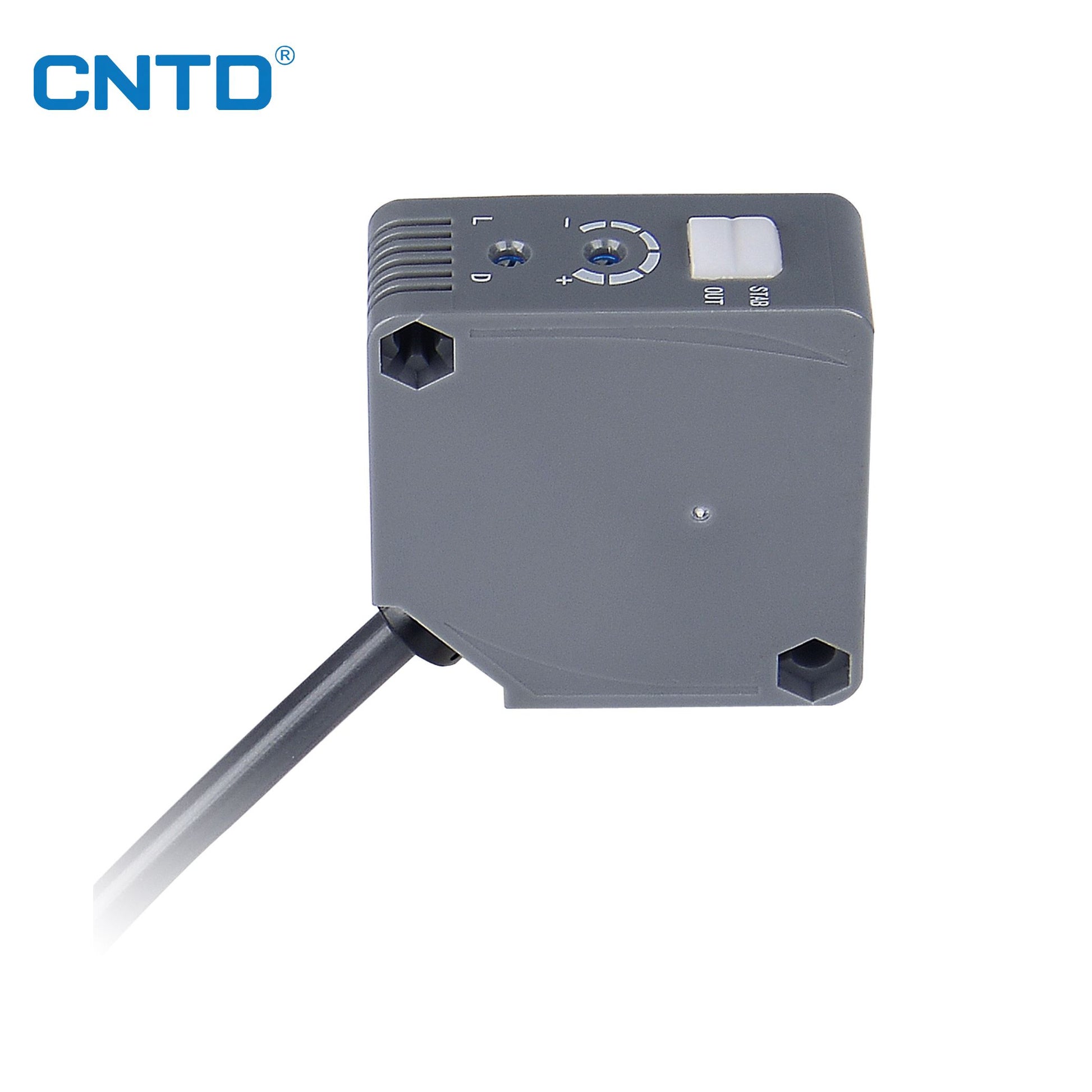

CGF50‑D30PB – 30 cm Diffuse Photoelectric Sensor (Square, PNP-NC)
GH₵300.00
GH₵500.00
Pickup currently not available
The CGF50‑D30PB is a high-performance photoelectric sensor designed for non-contact object detection in industrial automation systems. Built with a durable 50 mm × 50 mm square housing, it operates on the diffuse-reflective principle, detecting objects directly up to 30 cm away—no reflector required.
This version is equipped with a 3-wire PNP output, Normally Closed (NC), making it ideal for fail-safe or specific control logic applications where output deactivation upon detection is preferred.
✅ Key Features
-
Detection Mode: Diffuse reflective – up to 30 cm
-
Output Type: PNP, Normally Closed (NC)
-
Sensing Target: Opaque objects (30 × 30 cm standard test object)
-
Response Time: < 8.2 ms for rapid detection
-
LED Indicator: Red LED shows output state
-
Protection Level: IP65 – resistant to water and dust
-
Built-in Protections: Reverse polarity, surge protection
🔌 Electrical Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 10 – 30 V DC |
| Output Load Current | Max. 200 mA |
| Residual Voltage | ≤ 1 V |
| Current Consumption | ~25 mA |
| Output Type | 3-wire PNP, Normally Closed |
| Cable Type | PVC, 3-core, 1.5 m (AWG 22) |
🌡️ Environmental & Mechanical
| Parameter | Specification |
|---|---|
| Operating Temperature | –15 °C to +55 °C |
| Storage Temperature | –25 °C to +70 °C |
| Shock Resistance | 50 g, 3 times per axis |
| Vibration Resistance | 1 mm, 10–55 Hz, 2 hours/axis |
| Housing Material | ABS (Body), PMMA (Lens) |
| Protection Rating | IP65 |
📦 Applications
-
Packaging lines
-
Conveyor-based object detection
-
Presence or absence sensing in production
-
Industrial automation and safety logic control
-
Smart factory and warehouse systems
The CGF50‑D30PB is perfect for engineers and integrators who need precise, reliable, and quick response sensors in industrial environments. Its Normally Closed configuration makes it especially useful in systems where failure detection is critical.
