Contents:

• 2 × Coupler Plates (Left + Right)
• 4 × M6 × 12 mm Bolts
• 4 × M6 Nuts (hex or flange type)
• Optional: M6 washers (Form A or roofing washers)

Specifications:

• Material: Pre-galvanised steel
• Finish: Stainless steel (for corrosion resistance)
• Dimensions (typical):
• Length: 170–245 mm
• Width: 25–54 mm
• Thickness: 1.2–1.5 mm
• Slot Size: 20 × 8 mm or 35 × 8 mm (to align with tray slots)
• Weight: ~0.4 kg per pair (HDG finish)

Features:

• Wrap-over or side-mounted design for easy alignment
• Maintains mechanical strength and electrical continuity
• Compatible with most medium-duty cable trays (50–300 mm wide)
• Quick installation using standard M6 hardware
• Complies with BS EN 61537 / IEC 61537 standards

Applications:

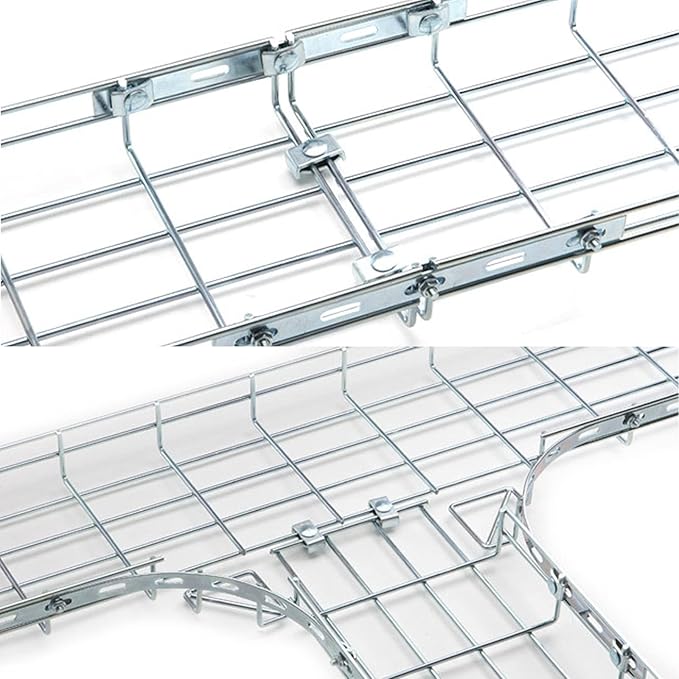

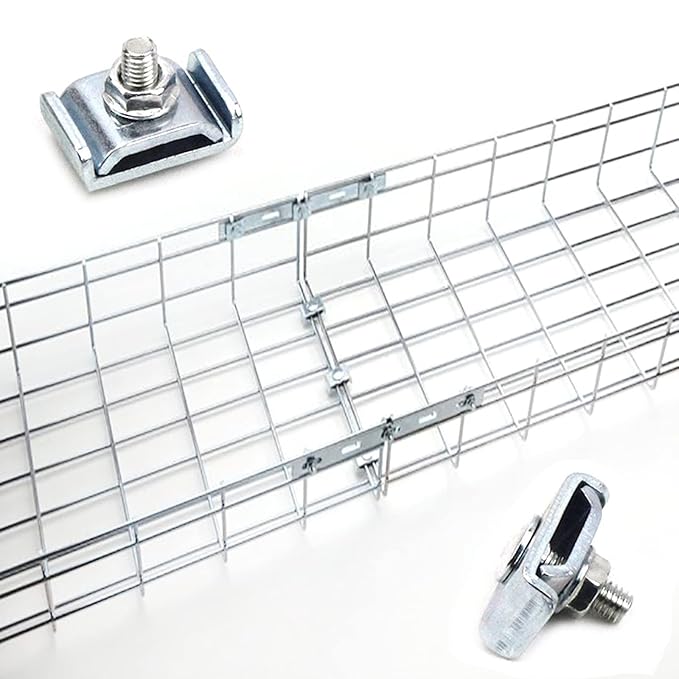

• Joining straight cable tray sections
• Supporting cable runs in industrial and commercial installations
• Ensuring structural integrity across tray joints
