Overview

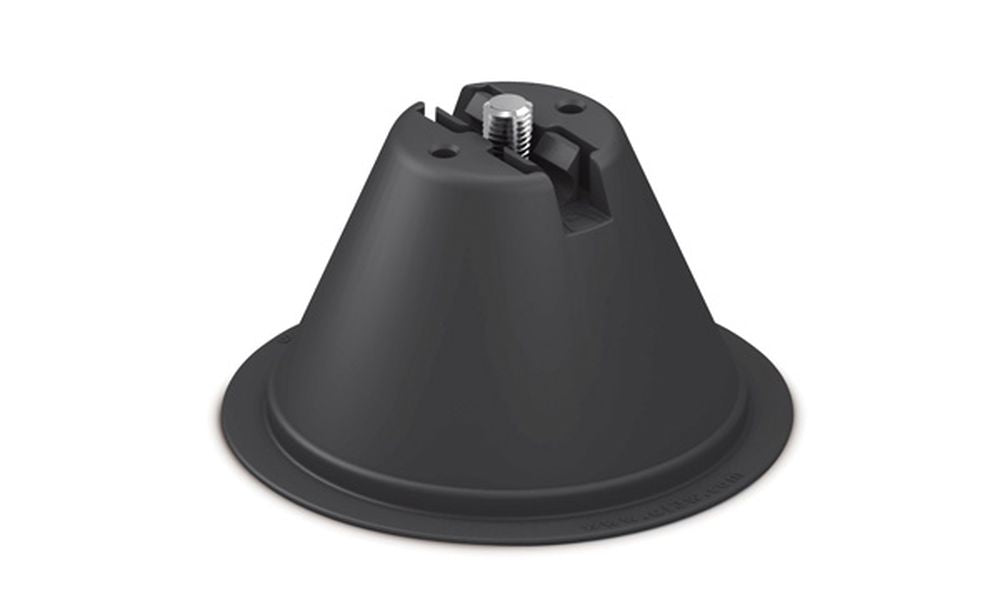

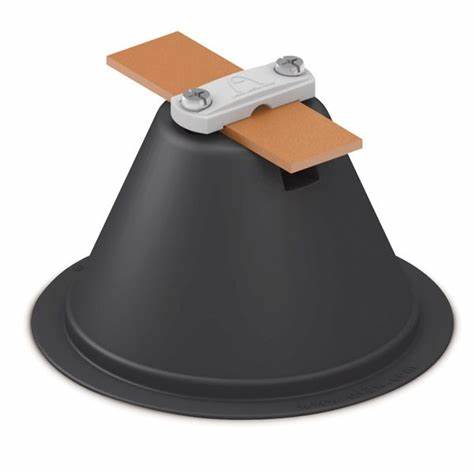

The AT-041E Conical Roof Conductor Holder by Aplicaciones Tecnológicas is designed for secure lightning protection installations on conical or pyramidal roofs. It provides stable support for conductors without requiring drilling, making it ideal for bitumen and concrete roofs.

Key Features

• Material: UV-resistant polyethylene + nylon clip for durability
• Dimensions: 140 x 140 x 90 mm for compact installation
• Conductor Compatibility: Ø8 - 10 mm cable or 30 x 2 - 30 x 3.5 mm tape
• Weight: 80 g for lightweight handling
• Conductor Elevation: 65 mm for optimized lightning protection
• Includes: Clips for tape and cable for secure fastening
• Standards Compliance: Meets UNE 21186, NF C 17-102, IEC 62305

Why Choose the AT-041E?

• Reliable Lightning Protection – Ensures stable conductor positioning
• Versatile Applications – Ideal for bitumen, concrete, and non-drillable roofs
• Durable Construction – Made from high-quality UV-resistant materials
• Safety Compliance – Meets international lightning protection standards
