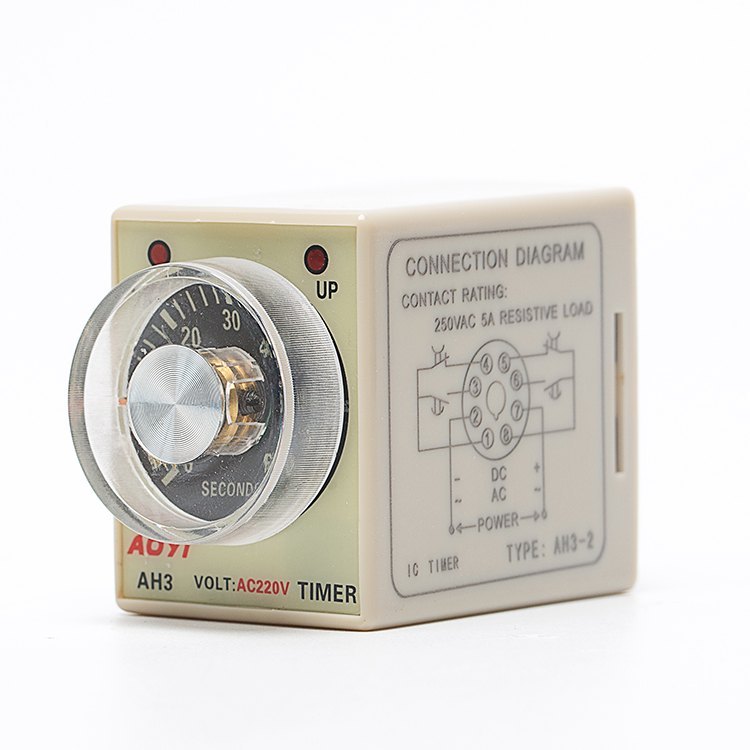

Supply Voltage: 220V AC Mounting: 8-pin plug-in (DIN 48 × 48 mm)
Output Type: DPDT (2 Form C) relay contact Time Range: 0.1 seconds to 60 minutes (model-dependent)

Key Specifications:

• Timing Function: ON-delay (Power ON start)
• Contact Rating: 5A @ 250V AC / 30V DC (resistive load)
• Time Range Options: 0.1s–10s, 0.5s–60s, 1min–30min, 2min–60min (varies by model)
• Reset Time: ≤0.1s
• Repeat Accuracy: ±1%
• Setting Error: ±10% ±0.05s
• Power Consumption: ~2 VA
• Ambient Temp: -10°C to +55°C
• Protection Rating: IP20 (terminals), IP40 (front panel)
• Dimensions: Approx. 80 × 49 × 39 mm
• Socket Compatibility: P3G-08, US-08

Features:

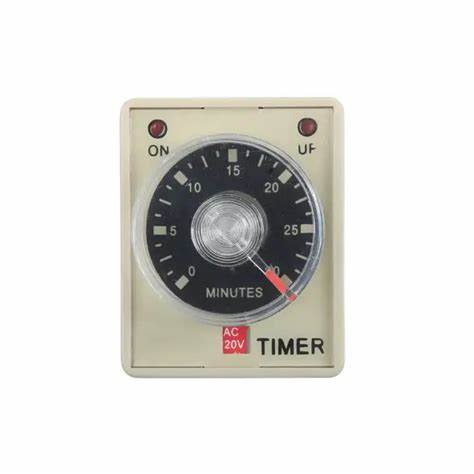

• Rotary dial for precise time setting
• LED indicators for power and output status
• CMOS IC for low power consumption and high stability
• Compact and rugged design for panel integration
• Long mechanical life: 5 million operations

Applications:

• Motor start/stop delay
• Conveyor sequencing
• Lighting and HVAC control
• Industrial process timing
• Safety interlocks
