Product Description:

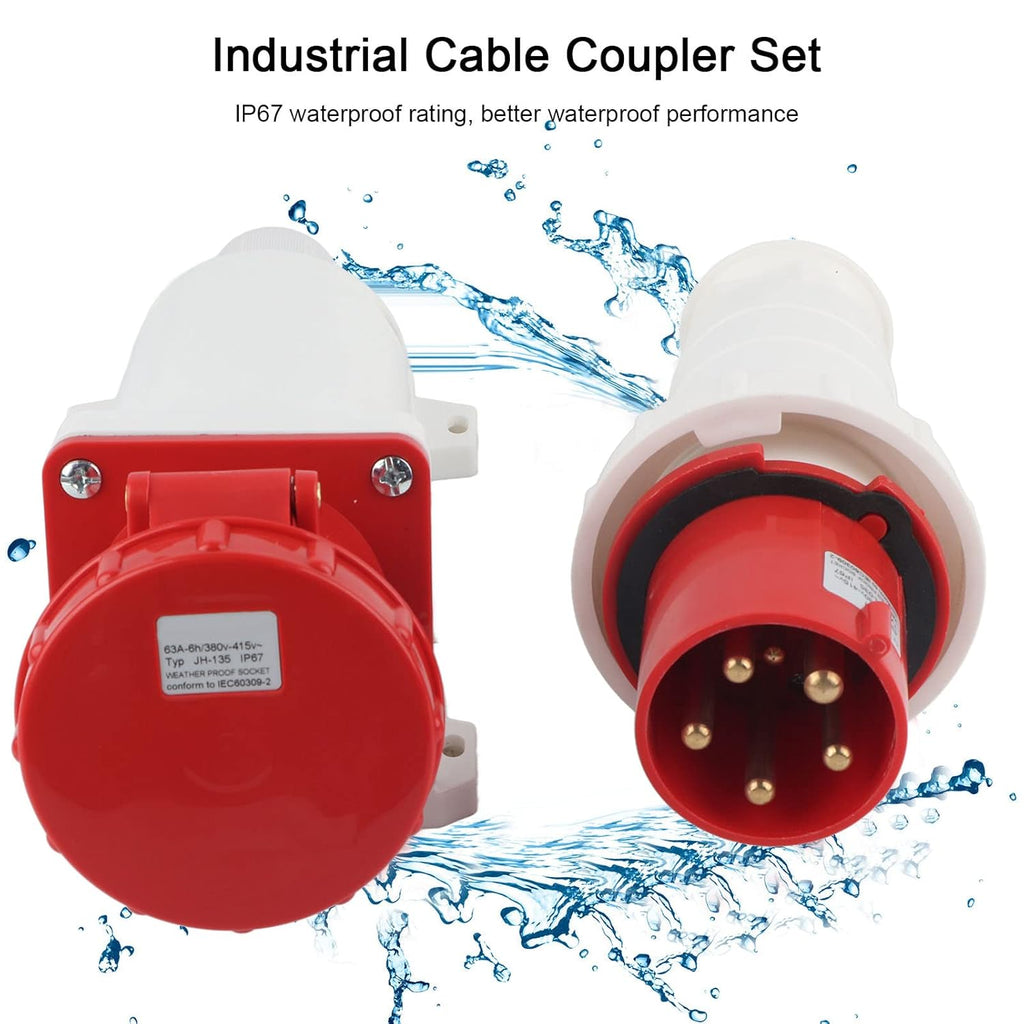

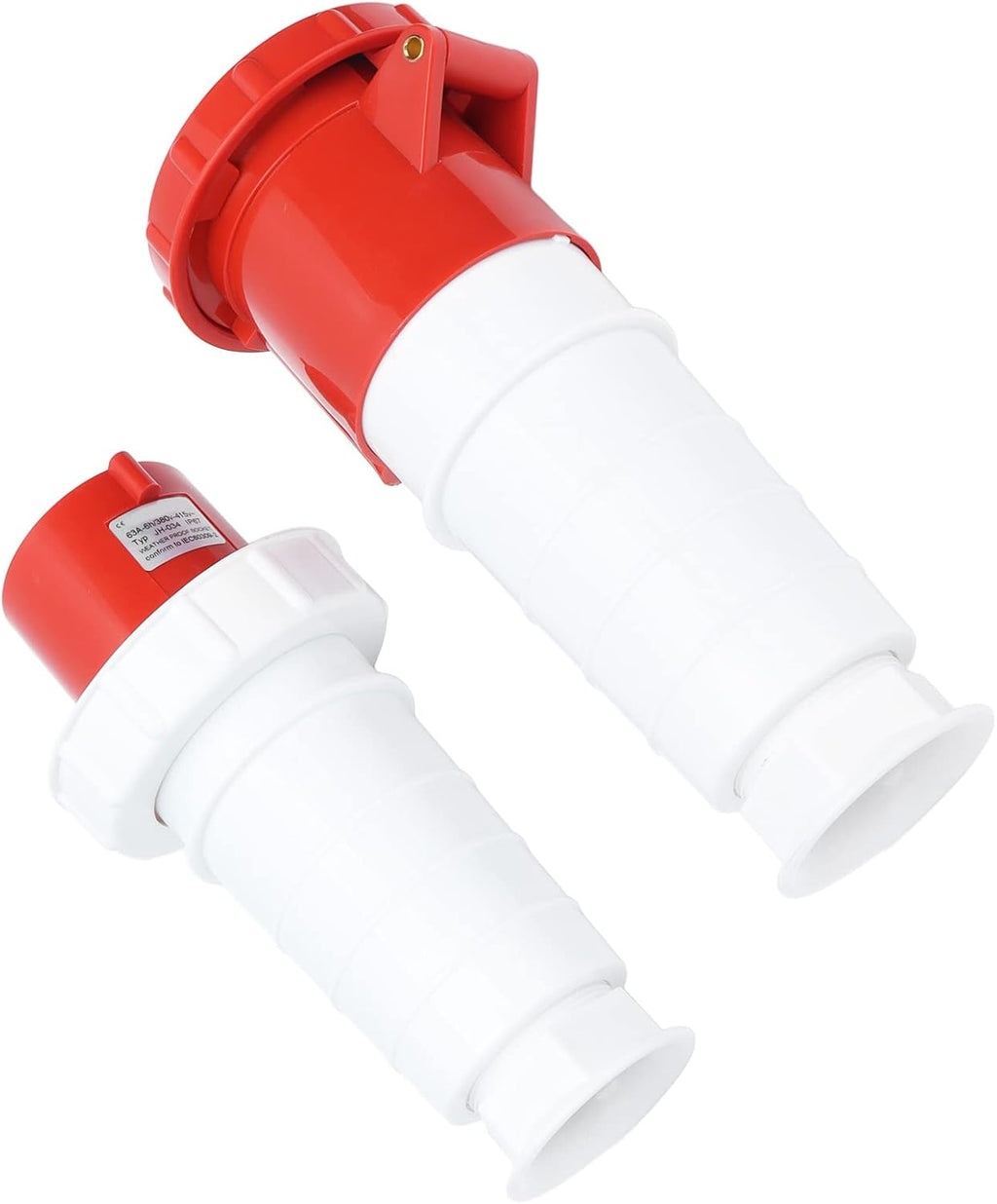

The 63A 5-Pin Straight Wall Plug & Socket (Male & Female) is engineered for robust, portable, and splashproof connections in 400V three-phase systems with neutral and earth (3P+N+E). Designed for high-current applications, both plug and socket are straight inline types, making them perfect for use in temporary power systems, industrial equipment, generators, and construction sites.

Built with impact-resistant thermoplastic housings and nickel-plated brass contacts, this IP44-rated set provides reliable electrical performance, excellent mechanical durability, and protection against water splashes and dust.

Key Features:

• Rated Current: 63 Amps

• Rated Voltage: 400V AC

• Poles: 5 (3P+N+E – Three Phase + Neutral + Earth)

• Frequency: 50/60Hz

• Plug Type: Straight Inline Plug (Male)

• Socket Type: Straight Inline Socket (Female)

• Design: Portable, cable-to-cable connection

• Ingress Protection: IP44 – Splashproof

• Cable Entry Size: 18–32 mm

• Connection Terminals: Screw-type

• Housing Material: Flame-retardant thermoplastic

• Contact Material: Nickel-plated brass

• Color Code: Red (for 400V – IEC 60309 Standard)

• Temperature Range: -25°C to +80°C

• Standards Compliance: IEC 60309-1 & IEC 60309-2

Applications:

• Portable generator connections

• Heavy-duty extension cables

• Mobile industrial machinery

• Construction and mining site tools

• Outdoor event or festival power distribution

• Marine and dockside power systems

What’s Included:

• 1x 63A 5-Pin Straight Plug (Male) – IP44

• 1x 63A 5-Pin Straight Socket (Female) – IP44

• Cable glands

• Installation instructions
