Product Description:

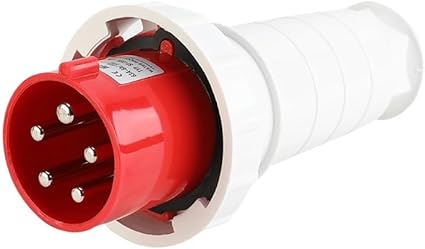

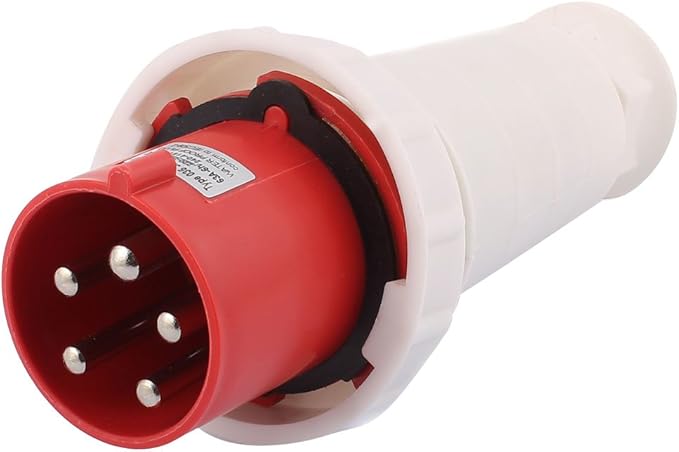

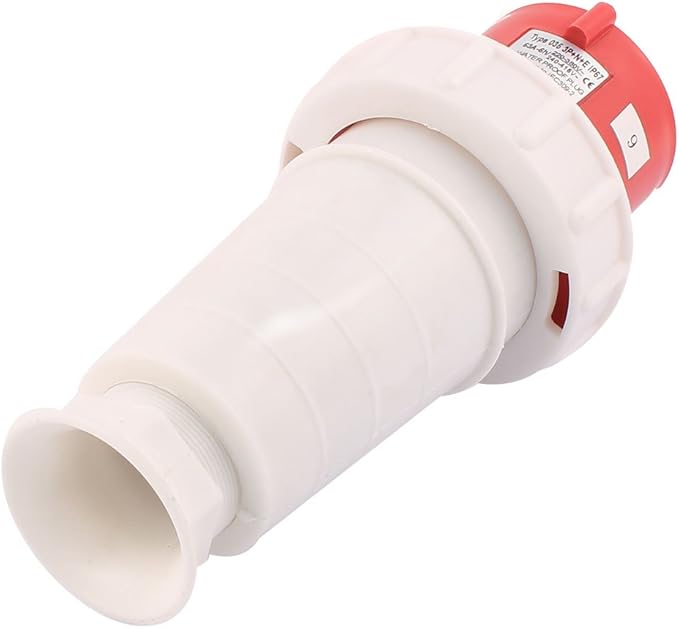

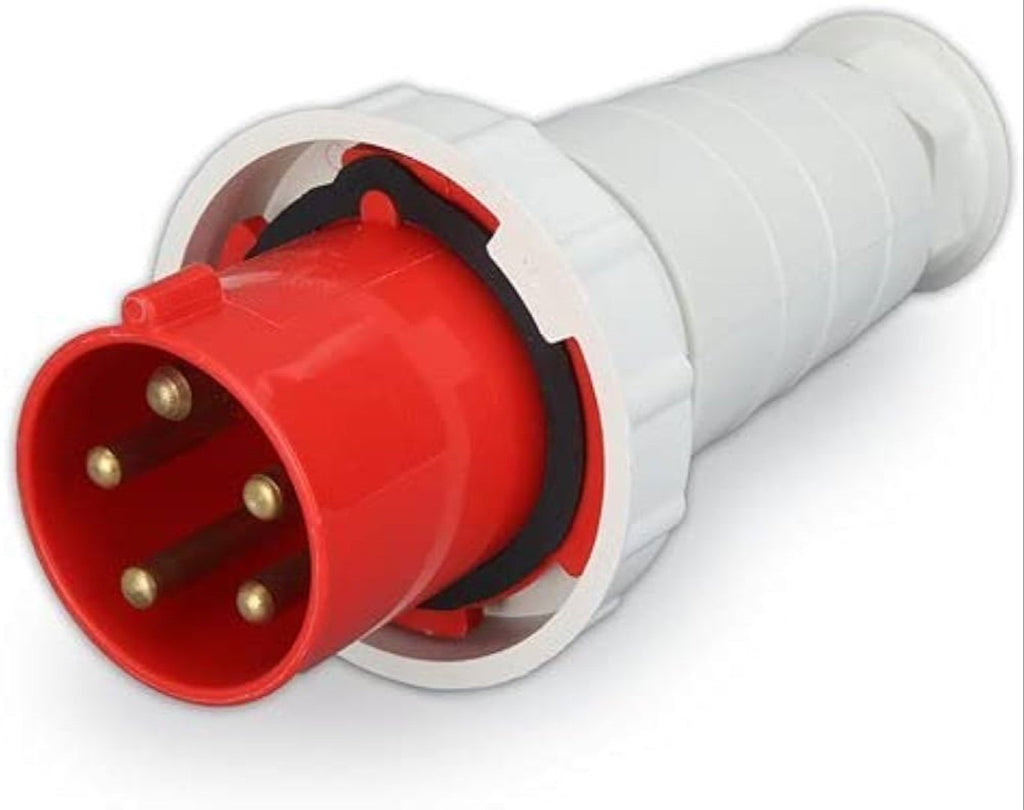

The 63A 5-Pin Straight Industrial Plug is a heavy-duty, high-capacity power connector designed for 400V three-phase systems with neutral and earth (3P+N+E). Suitable for powering industrial equipment, generators, distribution boards, and large machinery, this plug offers safe, stable, and splashproof (IP44-rated) performance in harsh working environments.

Engineered to meet international standards (IEC 60309), it features a straight inline design for flexible cable connections and quick plug-in access. The body is built from flame-retardant thermoplastic, while the nickel-plated brass contacts provide excellent durability and conductivity.

Key Features:

• Current Rating: 63 Amps

• Voltage: 400V AC

• Poles: 5 (3 Phase + Neutral + Earth / 3P+N+E)

• Frequency: 50/60Hz

• Design: Straight inline plug (Male)

• Ingress Protection: IP44 – Splashproof (protects from splashes and dust)

• Cable Entry Size: 18–32 mm

• Connection Type: Screw terminals

• Housing Material: High-impact, flame-retardant thermoplastic

• Contact Material: Nickel-plated brass

• Operating Temperature: -25°C to +80°C

• Color Code: Red (400V – IEC 60309)

• Certifications: IEC 60309-1 & IEC 60309-2

Applications:

• Heavy industrial machinery

• Construction site power tools

• Portable generators and load banks

• Food and beverage processing equipment

• Marine and dockside electrical systems

• Outdoor event power supply setups

What’s Included:

• 1x 63A 5-Pin Straight Industrial Plug (IP44 Rated)

• 1x Cable gland

• 1x Installation guide
