Product Description:

The 63A 5-Pin Industrial Plug & Panel-Mount Socket is a robust, high-capacity solution for connecting 400V three-phase equipment with neutral and earth (3P+N+E). This configuration is ideal for permanent power input/output installations on machinery, switchboards, generator panels, or control cabinets.

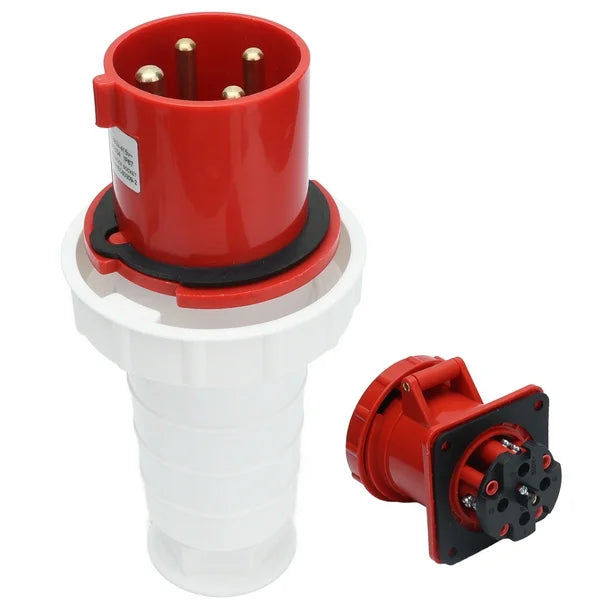

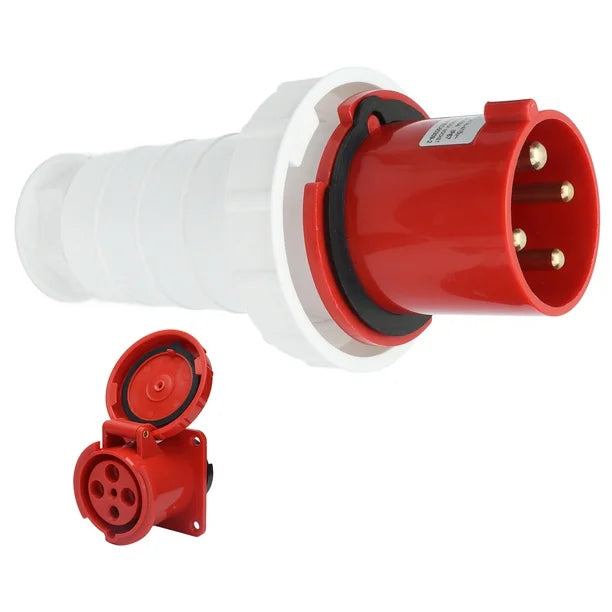

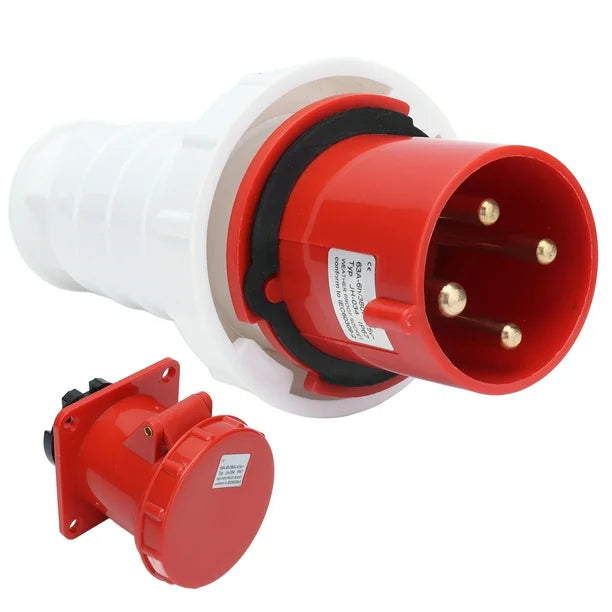

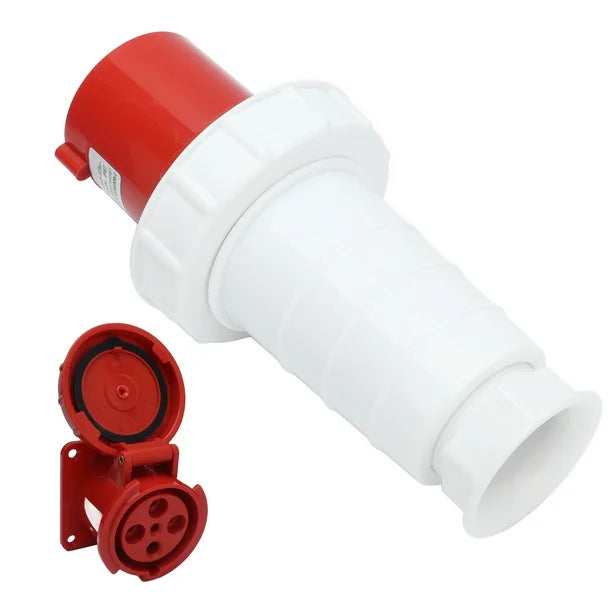

The straight inline male plug provides a portable high-amperage connection, while the panel-mount female socket allows for secure, flush installation on flat surfaces. Both components are IP44-rated, offering protection against water spray and dust — perfect for demanding environments like factories, workshops, and outdoor work zones.

Manufactured to IEC 60309 standards, these connectors feature flame-retardant thermoplastic enclosures and nickel-plated brass contacts for safe, durable, and corrosion-resistant operation.

Key Features:

• Rated Current: 63 Amps

• Voltage: 400V AC

• Poles: 5 (3P+N+E – Three Phase + Neutral + Earth)

• Frequency: 50/60Hz

• Plug Type: Straight Inline Male Plug

• Socket Type: Panel-Mount Female Socket

• Ingress Protection: IP44 – Splashproof

• Cable Entry (Plug): 18–32 mm gland-compatible

• Panel Cutout (Socket): Standard IEC 60309 cutout

• Connection Terminals: Screw-type

• Housing Material: Flame-retardant, impact-resistant thermoplastic

• Contact Material: Nickel-plated brass

• Color Code: Red (for 400V per IEC 60309)

• Operating Temperature: -25°C to +80°C

• Standard Compliance: IEC 60309-1 / IEC 60309-2

Applications:

• Generator and power distribution panels

• Industrial equipment and switchgear

• Food processing and packaging machinery

• Marine shore power and control systems

• Agricultural and commercial installations

• Construction site power feeds

What’s Included:

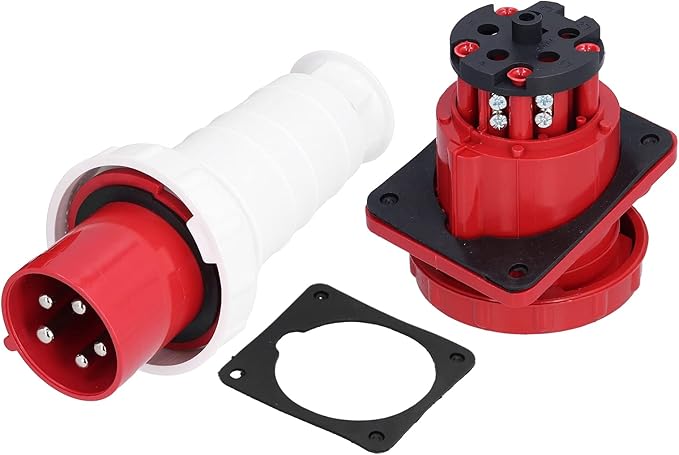

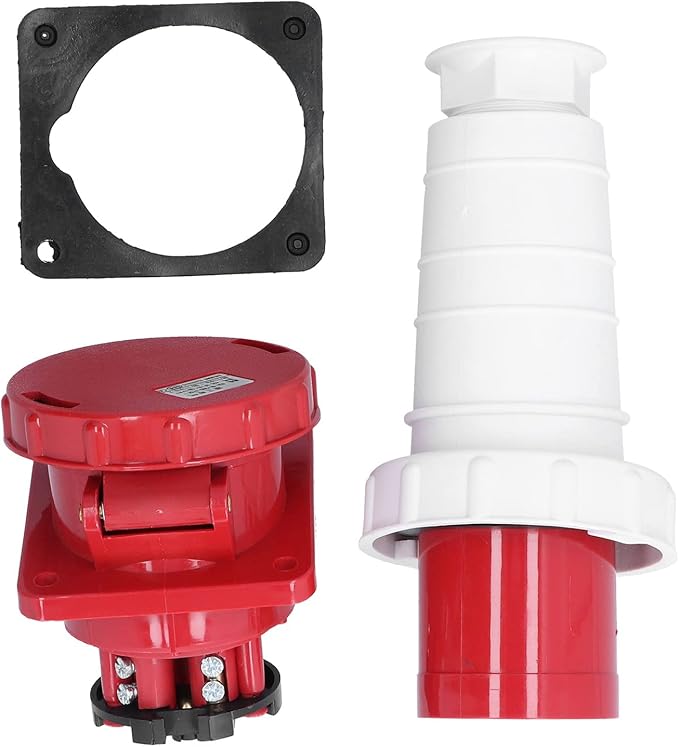

• 1x 63A 5-Pin Straight Industrial Plug (Male, IP44)

• 1x 63A 5-Pin Panel-Mount Industrial Socket (Female, IP44)

• Mounting screws and gaskets

• Cable gland and installation guide
