Product Description:

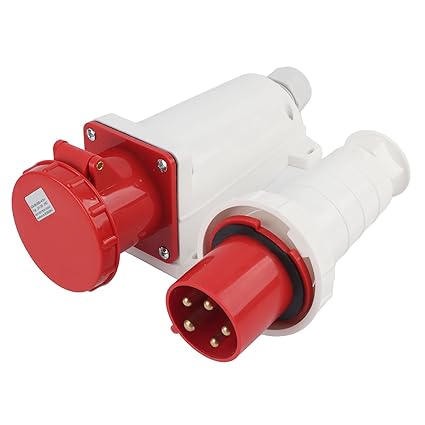

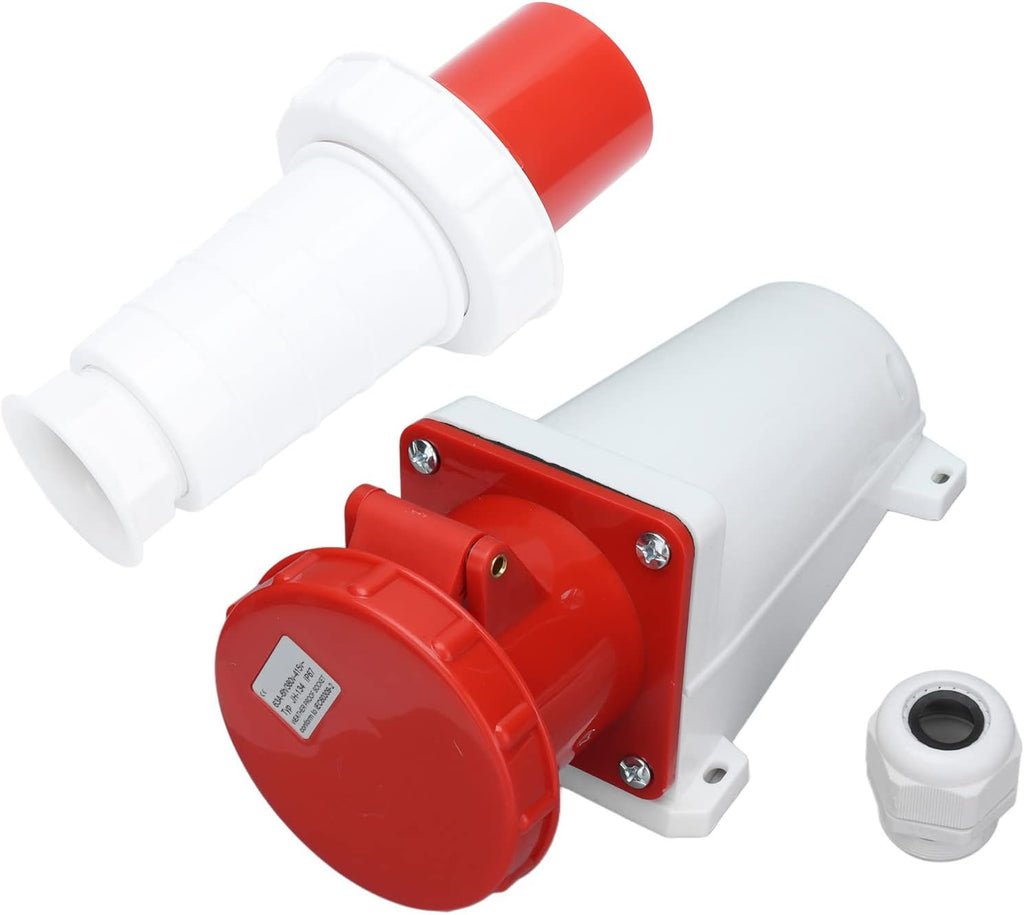

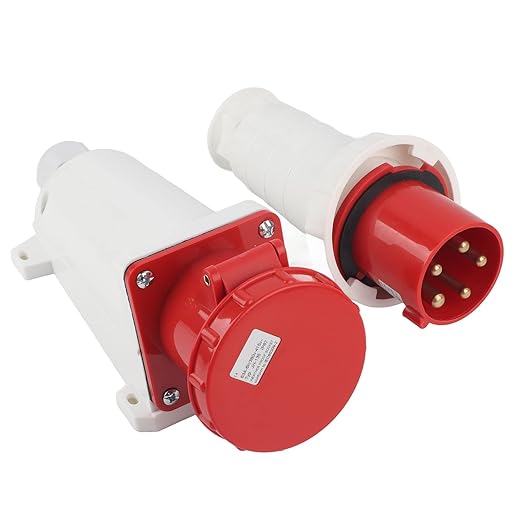

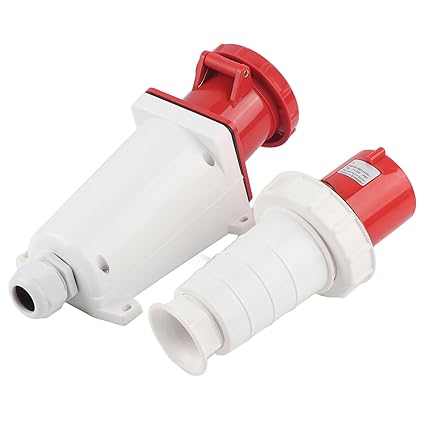

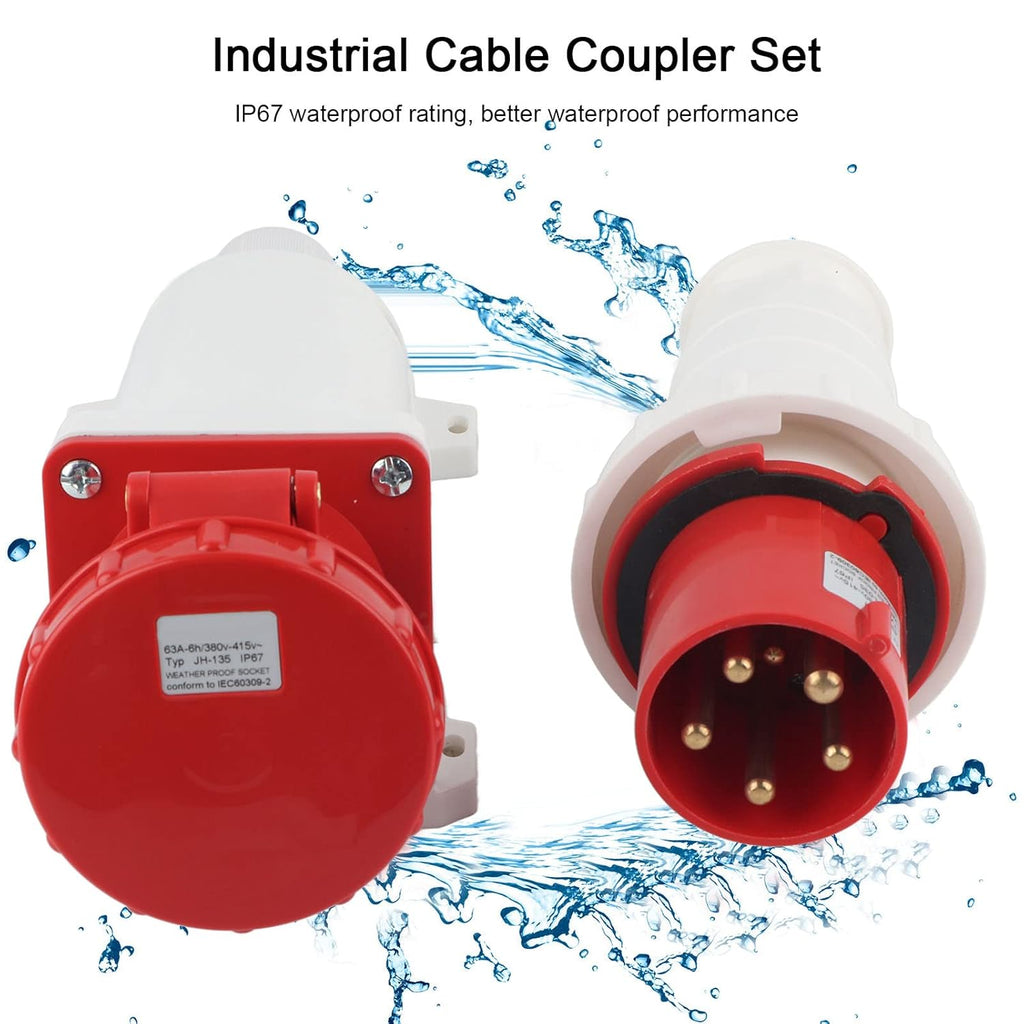

The 63A 5-Pin Industrial Plug & Wall-Mount Socket set provides a reliable and high-capacity electrical connection for 400V three-phase systems with neutral and earth (3P+N+E). Designed for heavy-duty industrial use, the straight male plug is ideal for portable equipment, while the wall-mount female socket serves as a fixed power outlet on machinery, panels, or site power boards.

Both units are IP44 rated, offering protection against dust and water splashes — suitable for factories, warehouses, generator connections, and outdoor sheltered environments. Built to IEC 60309 standards, they feature flame-retardant thermoplastic enclosures and nickel-plated brass contacts for optimal safety, conductivity, and long-term performance.

Key Features:

• Rated Current: 63 Amps

• Rated Voltage: 400V AC

• Poles: 5 (3P+N+E – Three Phase + Neutral + Earth)

• Frequency: 50/60Hz

• Plug Type: Straight Inline Male Plug

• Socket Type: Wall-Mount Female Socket

• Ingress Protection: IP44 – Splashproof

• Cable Entry (Plug): 18–32 mm

• Cable Entry (Socket): Rear or side knockout entries

• Connection Type: Screw terminals

• Housing Material: Impact-resistant, flame-retardant thermoplastic

• Contact Material: Nickel-plated brass

• Color Code: Red (standard for 400V per IEC 60309)

• Operating Temperature: -25°C to +80°C

• Certifications: IEC 60309-1 / IEC 60309-2 Compliant

Applications:

• Heavy-duty industrial equipment

• Generator and mains power supply connections

• Construction sites and mobile power stations

• Commercial food processing plants

• Agricultural and marine power systems

• Temporary event and exhibition setups

What’s Included:

• 1x 63A 5-Pin Straight Industrial Plug (Male, IP44)

• 1x 63A 5-Pin Wall-Mount Industrial Socket (Female, IP44)

• Cable glands

• Mounting accessories

• Installation guide
