Product Description:

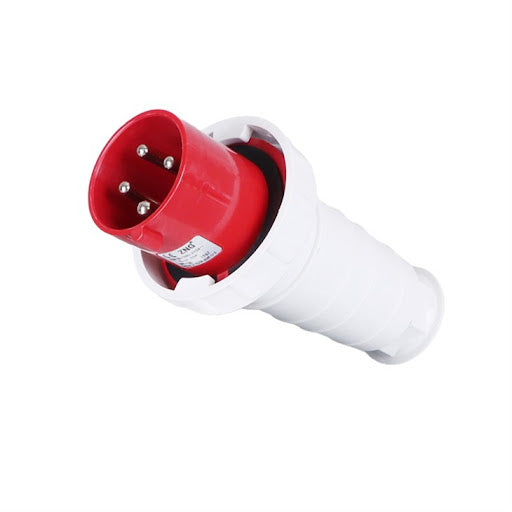

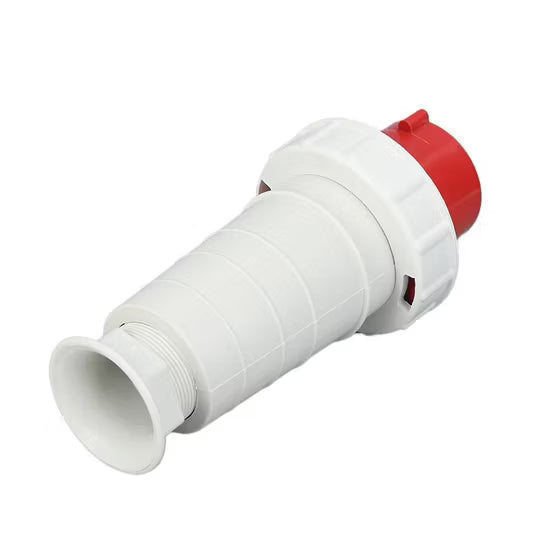

The 63A 4-Pin Industrial Wall Plug is built for rugged, high-power connections in 400V three-phase systems with earth (3P+E) — where neutral is not required. Designed for wall-mounted surface installations, this male plug delivers safe and stable power to heavy machinery, generators, and fixed equipment in industrial environments.

Manufactured to IEC 60309 standards, the plug features a flame-retardant thermoplastic housing and nickel-plated brass contacts, ensuring high conductivity, corrosion resistance, and long-term durability. With an IP44 rating, it provides protection against dust and water spray, making it suitable for indoor and sheltered outdoor use.

Key Features:

• Rated Current: 63 Amps

• Voltage: 400V AC

• Poles: 4 (3P+E – Three Phase + Earth)

• Frequency: 50/60Hz

• Mounting Type: Wall-mounted (male)

• Design: Right-angle plug with surface entry

• Ingress Protection: IP44 – Splashproof

• Cable Entry: Rear or side gland-compatible knockout

• Connection Type: Screw terminals

• Housing Material: Flame-retardant, high-impact thermoplastic

• Contact Material: Nickel-plated brass

• Color Code: Red (400V per IEC 60309 standard)

• Operating Temperature: -25°C to +80°C

• Standards Compliance: IEC 60309-1 / IEC 60309-2

Applications:

• Motors and pumps (no neutral required)

• Generator mains power outputs

• Construction and mining equipment

• Industrial HVAC systems

• Marine and dockside power supplies

• Factory wall power outlets

What’s Included:

• 1x 63A 4-Pin Industrial Wall Plug (Male, IP44)

• Cable gland

• Mounting kit and installation instructions
