Description:

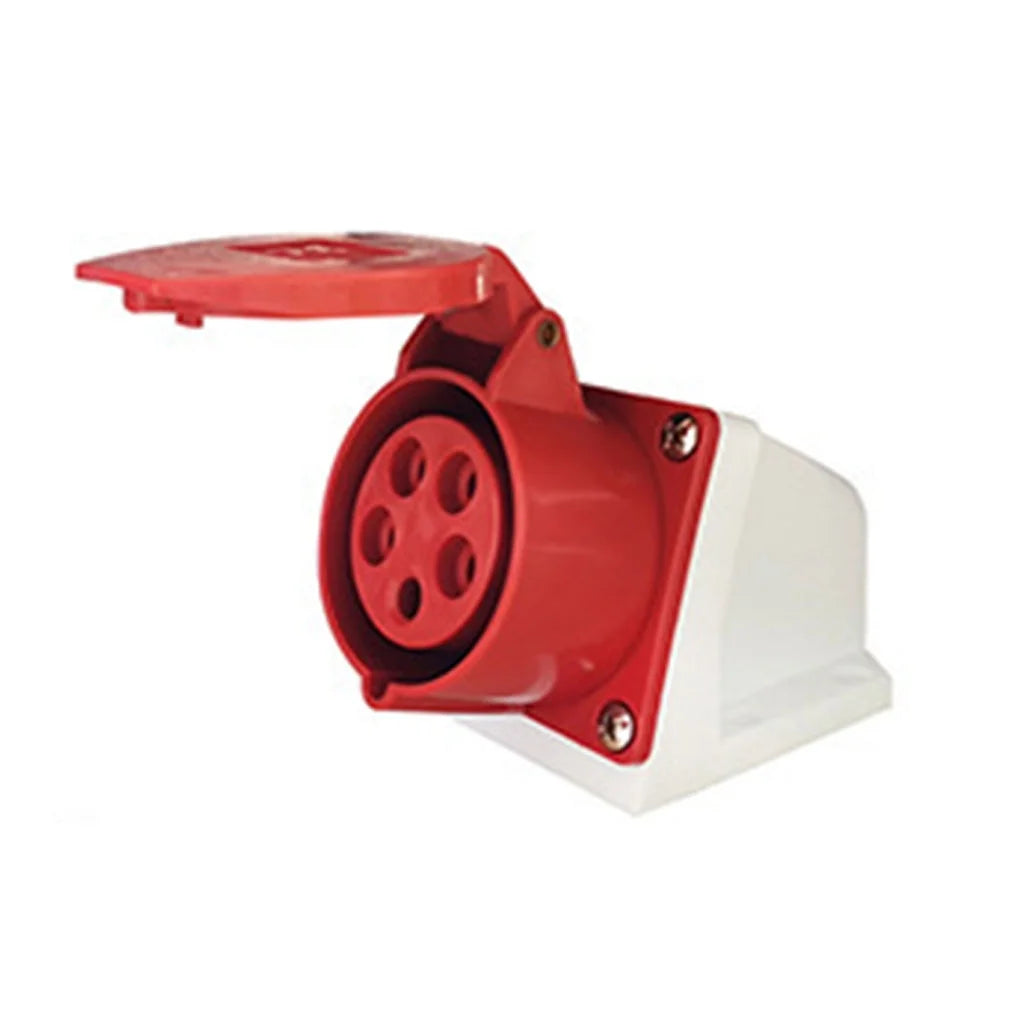

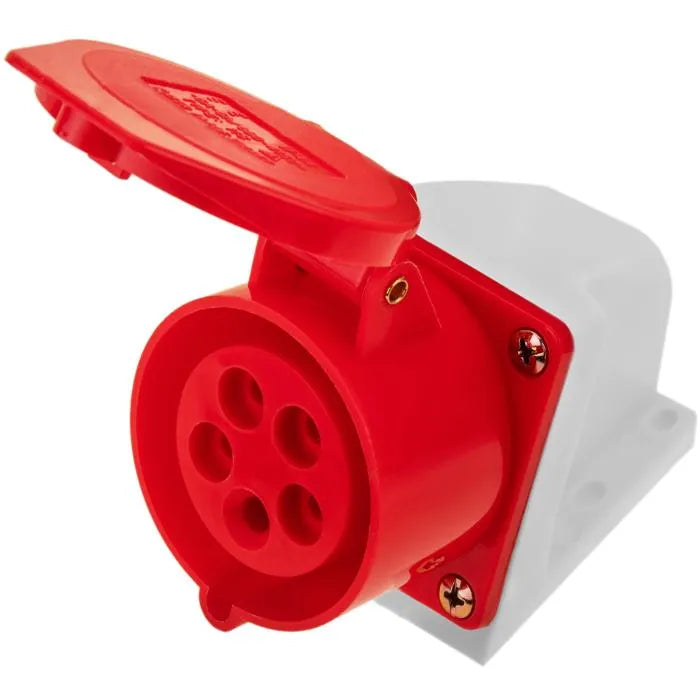

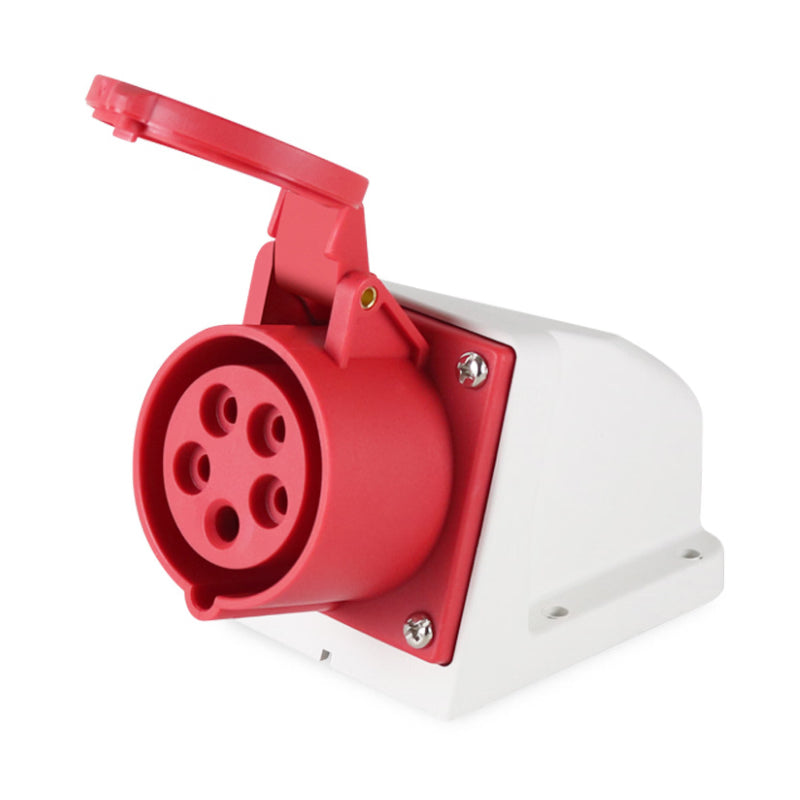

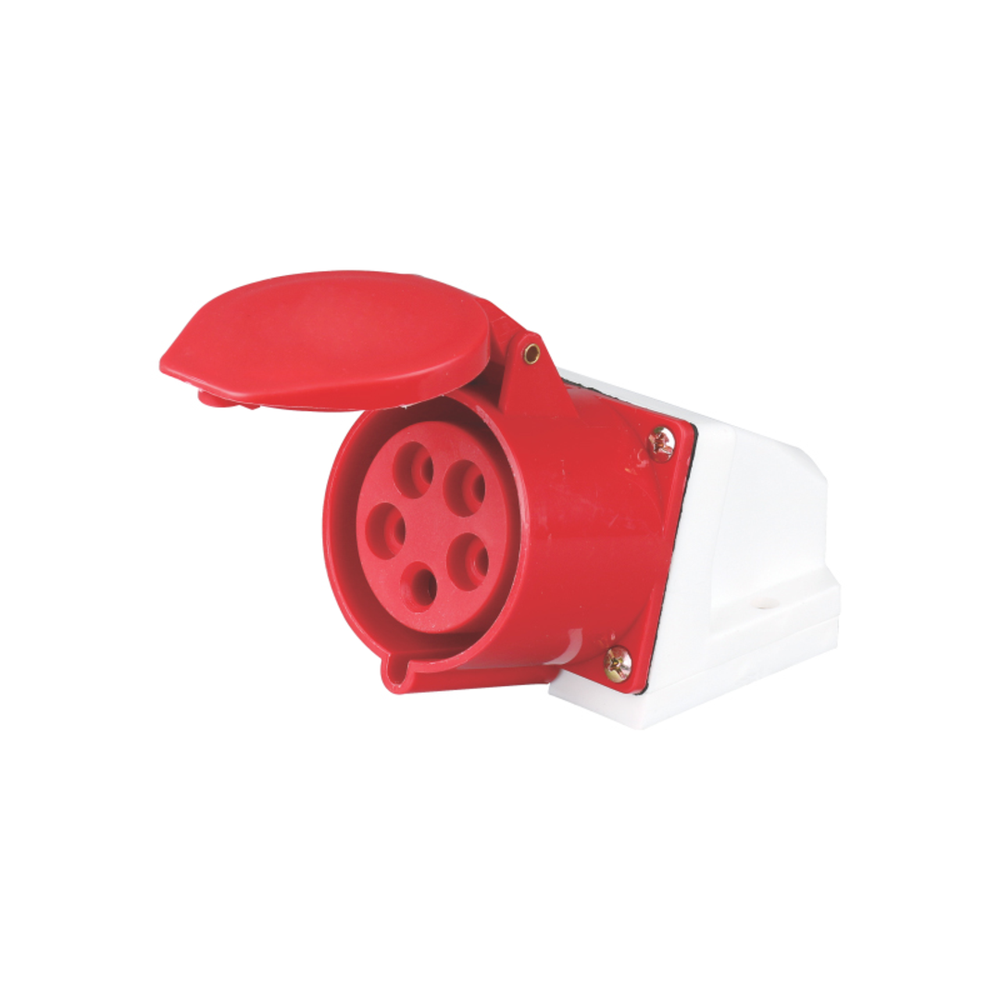

The 16A 5-Pin Wall Mount Industrial Socket is a compact and dependable power outlet designed for permanent installations in light-duty three-phase systems. Featuring a 3P+N+E (Three Phase + Neutral + Earth) configuration and an IP44 rating, this female socket is ideal for industrial panels, HVAC systems, equipment hookups, and mobile power units.

Built from flame-retardant, impact-resistant thermoplastic, it provides splash protection and long-term durability. The wall mount design allows for easy surface installation, and screw terminals ensure safe, secure wiring.

Specifications:

• Rated Current: 16 Amps

• Voltage: 380–415V AC

• Pins: 5 (3 Phase + Neutral + Earth)

• Socket Type: Female (Wall Mount / Surface)

• Configuration: 3P+N+E

• Mounting Type: Wall mounted (fixed installation)

• Protection Class: IP44 (Dust- and splash-resistant)

• Material: Flame-retardant polyamide body

• Terminal Type: Screw terminals

• Compliance: IEC 60309

• Operating Temperature: -25°C to +80°C

Features:

• Wall-mounted female socket with 5-pin configuration (3P+N+E)

• IP44 protection for indoor and covered outdoor use

• Ideal for control panels, distribution boards, and workshop setups

• Safe, reliable connection with screw-type terminals

• Tough thermoplastic body resists impact and heat
