Description:

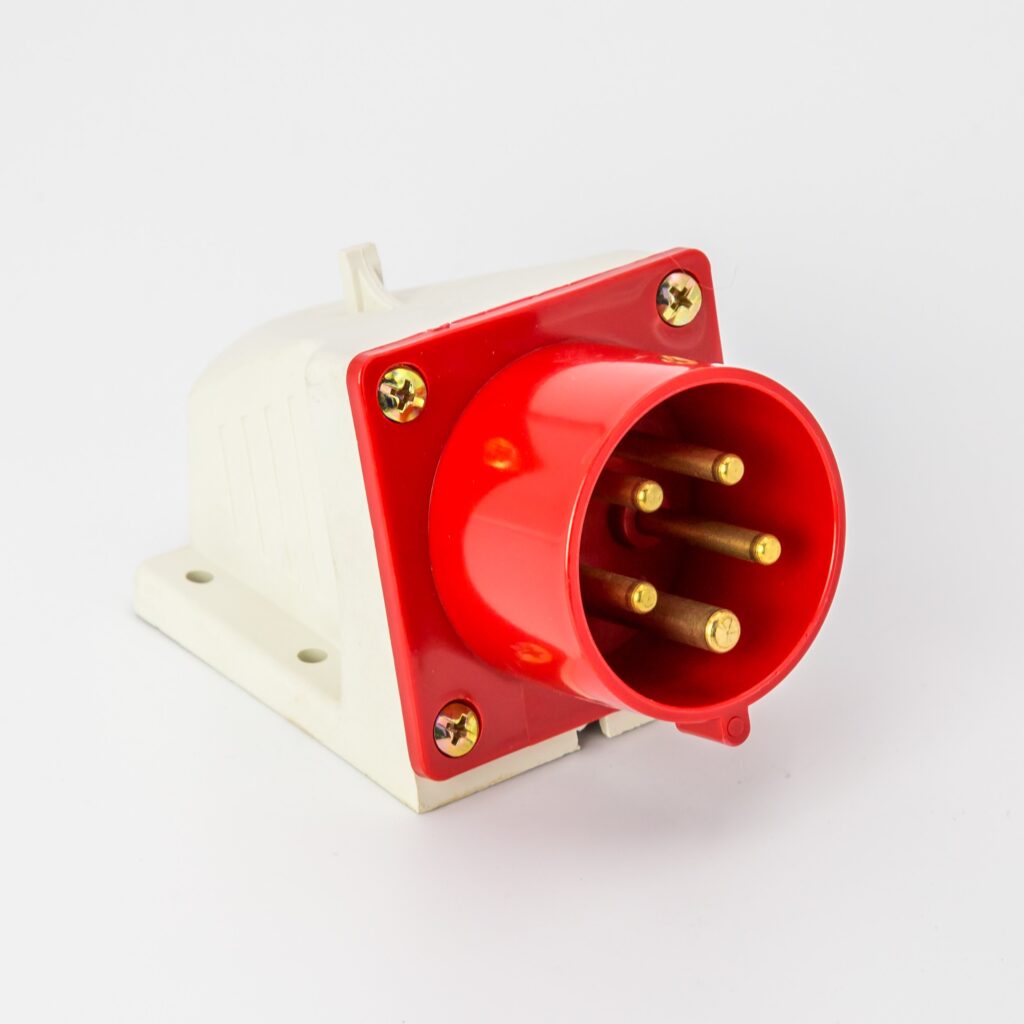

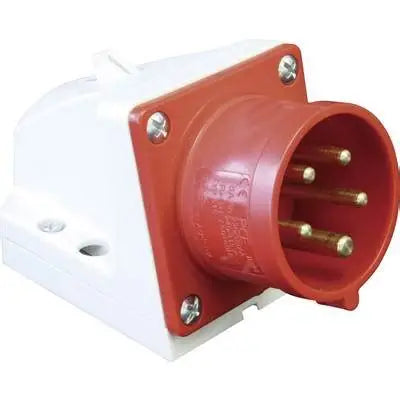

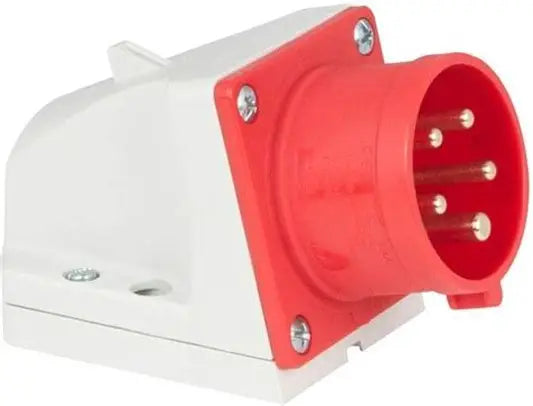

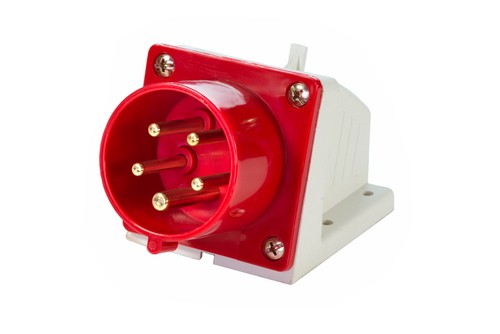

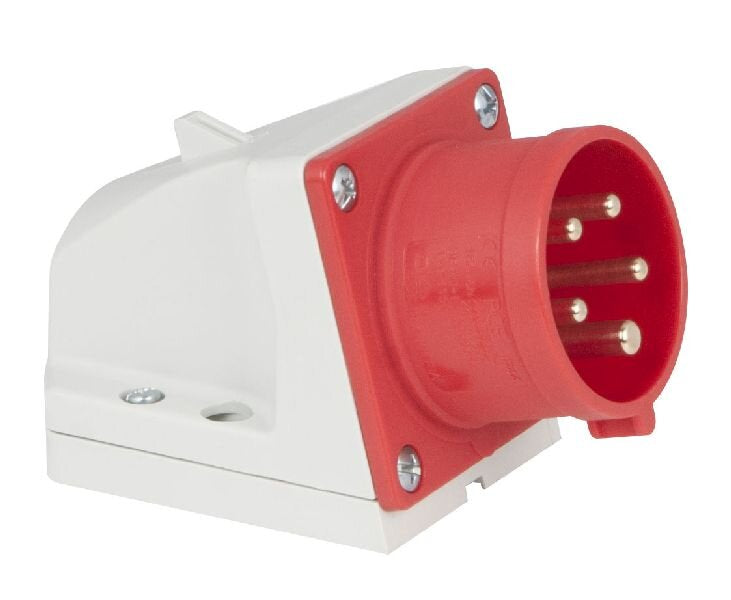

The 16A 5-Pin Wall Mount Industrial Male Plug is a reliable and space-saving power inlet designed for permanent installations in three-phase systems requiring neutral and earth connections. With a 3P+N+E (Three Phase + Neutral + Earth) configuration and an IP44 splash-proof rating, this male plug is ideal for wall-mounted generator inputs, control cabinets, HVAC equipment, and light industrial panels.

Built from flame-retardant, impact-resistant thermoplastic, it offers durability and easy internal wiring through screw terminals. Fully compliant with IEC 60309 standards, it ensures safe and consistent power entry in light-duty environments.

Specifications:

• Rated Current: 16 Amps

• Voltage: 380–415V AC

• Pins: 5 (3 Phase + Neutral + Earth)

• Plug Type: Male (Wall Mount / Fixed)

• Configuration: 3P+N+E

• Protection Class: IP44 (Dust- and splash-proof)

• Material: Flame-retardant polyamide body

• Terminal Type: Screw terminals

• Mounting Type: Wall mount (surface)

• Compliance: IEC 60309

• Operating Temperature: -25°C to +80°C

Features:

• Fixed wall-mount male plug for 5-wire three-phase systems

• Compact, durable, and easy to wire internally

• IP44-rated housing for indoor and sheltered outdoor use

• Ideal for power inlets on HVAC, generators, and control panels

• Provides reliable and secure electrical entry connection
