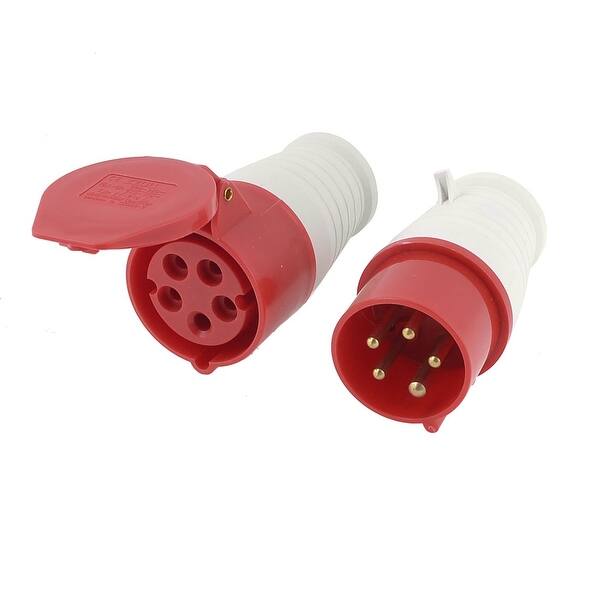

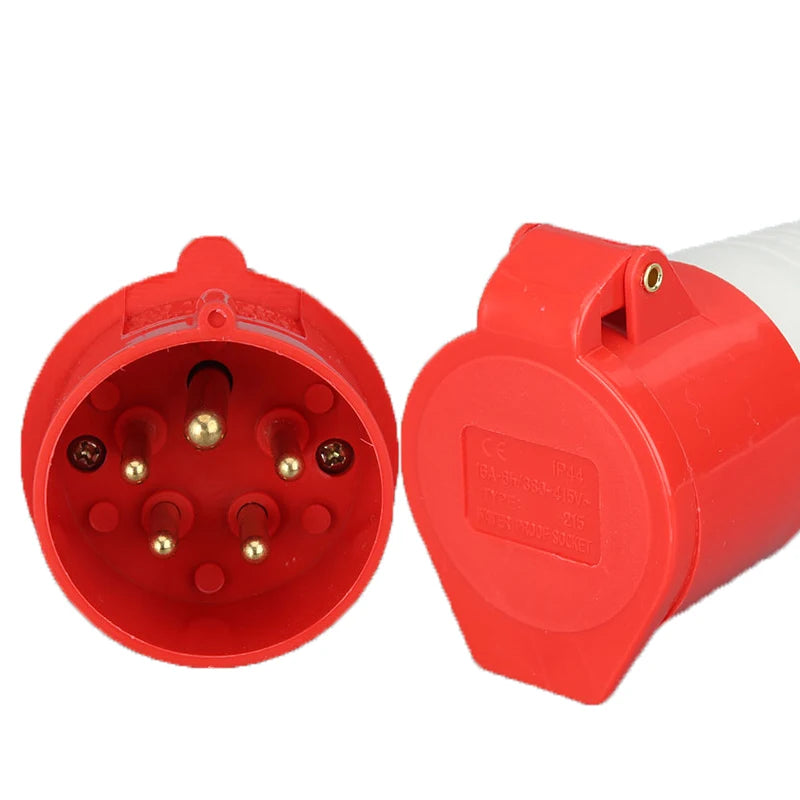

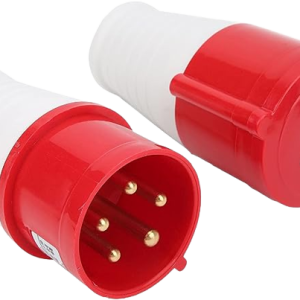

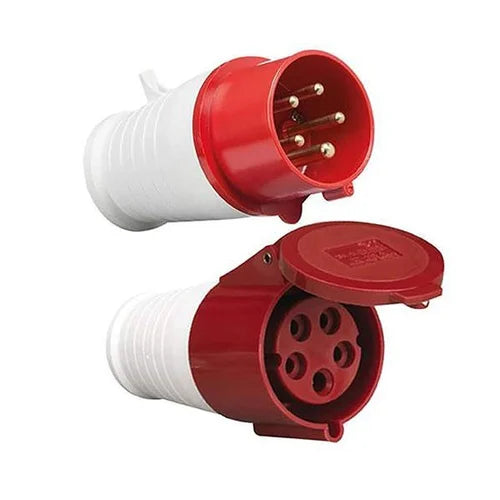

Product Description:

This 16A 5-Pin Straight Industrial Plug & Socket (Male & Female) is built for safe, efficient, and splashproof electrical connections in 400V three-phase applications. With an IP44 rating, it’s perfect for indoor and semi-outdoor environments where moisture or dust exposure is minimal.

The straight design offers quick plug-in convenience for machinery, power tools, and portable equipment in industrial, commercial, and workshop environments. Both plug and socket are constructed from high-grade thermoplastic and feature nickel-plated brass contacts for excellent conductivity and corrosion resistance.

Key Features:

• Current Rating: 16 Amps

• Voltage: 400V AC

• Poles: 5 (3 Phase + Neutral + Earth / 3P+N+E)

• Frequency: 50/60Hz

• Design: Straight type (inline male and female)

• Protection Rating: IP44 – Splashproof

• Connection Method: Screw terminals

• Cable Entry Size: 6–15 mm

• Housing Material: Flame-retardant, impact-resistant thermoplastic

• Contact Material: Nickel-plated brass

• Color: Red (indicates 400V per IEC 60309)

• Operating Temperature: -25°C to +80°C

• Certifications: IEC 60309-1 and IEC 60309-2 Compliant

Available Options:

• ✅ 16A 5-Pin Straight Male Plug

• ✅ 16A 5-Pin Straight Female Socket
  (Choose plug or socket before adding to cart)

Applications:

• Portable generators and equipment

• Light-duty industrial machines

• Workshops and repair stations

• Commercial kitchens and mobile units

• Stage/event power distribution

• Marine and agricultural setups

What’s Included:

• 1x 16A 5-Pin Straight Plug or Socket (IP44 Rated)

• 1x Cable Gland

• 1x Installation Guide
