Description:

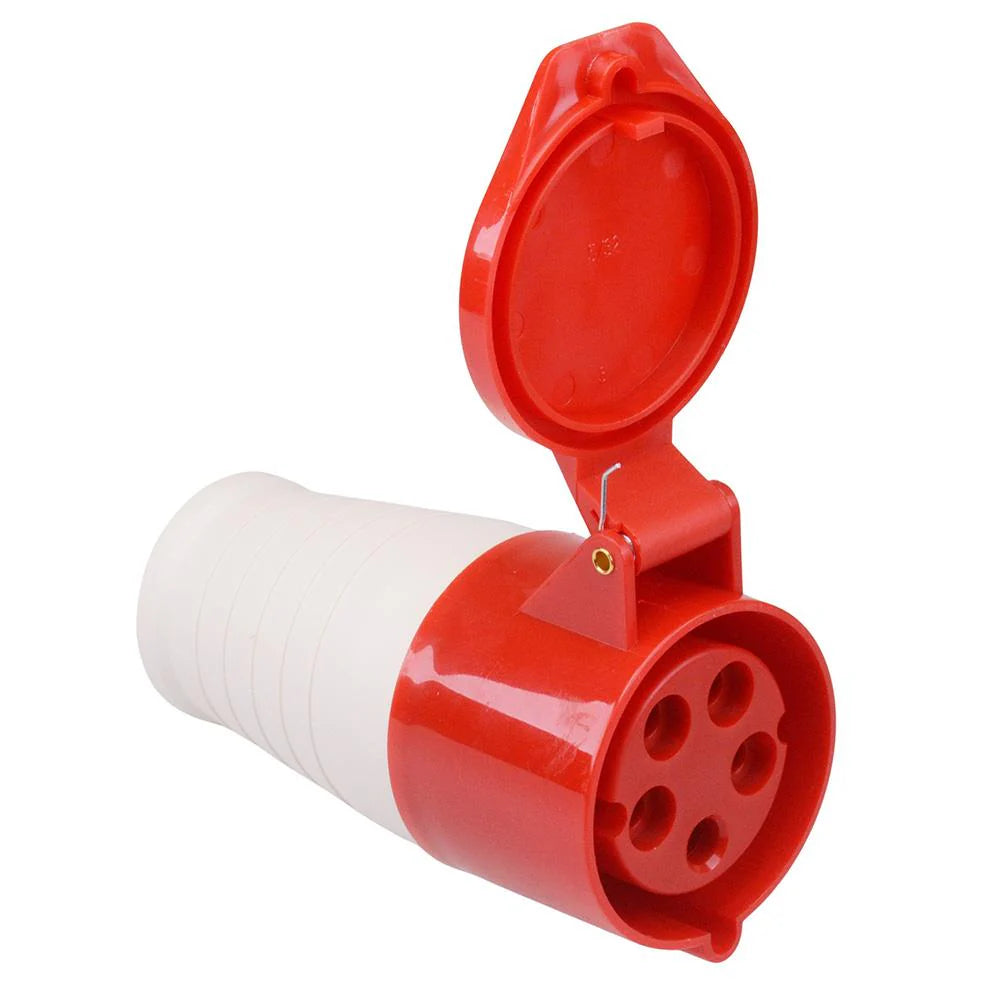

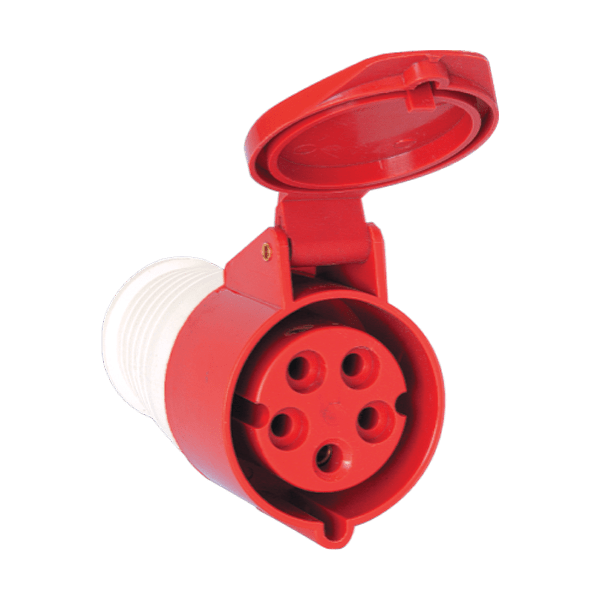

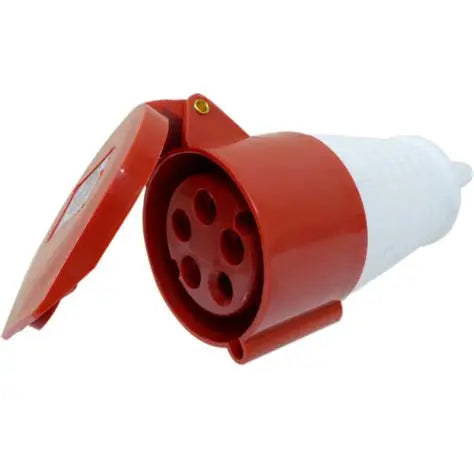

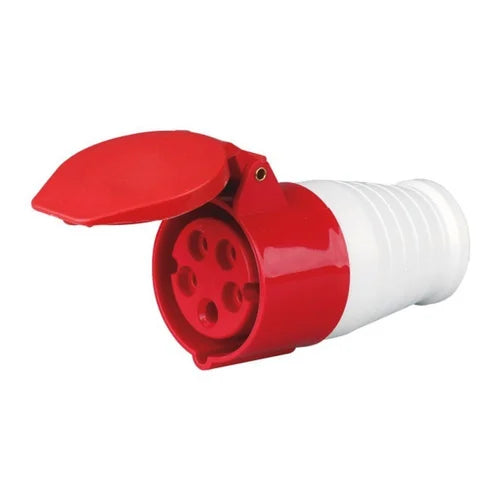

The 16A 5-Pin Straight Industrial Female Socket is a compact and reliable inline power connector designed for three-phase systems with neutral and earth. Featuring a 3P+N+E (Three Phase + Neutral + Earth) configuration and built to IP44 protection standards, this female socket is ideal for portable equipment, temporary power lines, and mobile installations.

Constructed from flame-retardant, impact-resistant thermoplastic, this straight (inline) female socket is built to withstand tough working conditions. It pairs perfectly with a 16A 5-pin male plug and offers quick, secure wiring via screw terminals.

Specifications:

• Rated Current: 16 Amps

• Voltage: 380–415V AC

• Pins: 5 (3 Phase + Neutral + Earth)

• Socket Type: Female (Straight / Inline)

• Configuration: 3P+N+E

• Protection Class: IP44 (Dust and splash-proof)

• Material: Flame-retardant polyamide body

• Terminal Type: Screw terminals

• Operating Temperature: -25°C to +80°C

• Standard Compliance: IEC 60309

Features:

• Inline female socket for mobile or portable power use

• 5-pin design with neutral for balanced load systems

• IP44 protection for indoor and semi-outdoor environments

• Strong housing resists heat, impact, and moisture

• Ideal for temporary equipment, tools, and control panels
