Description:

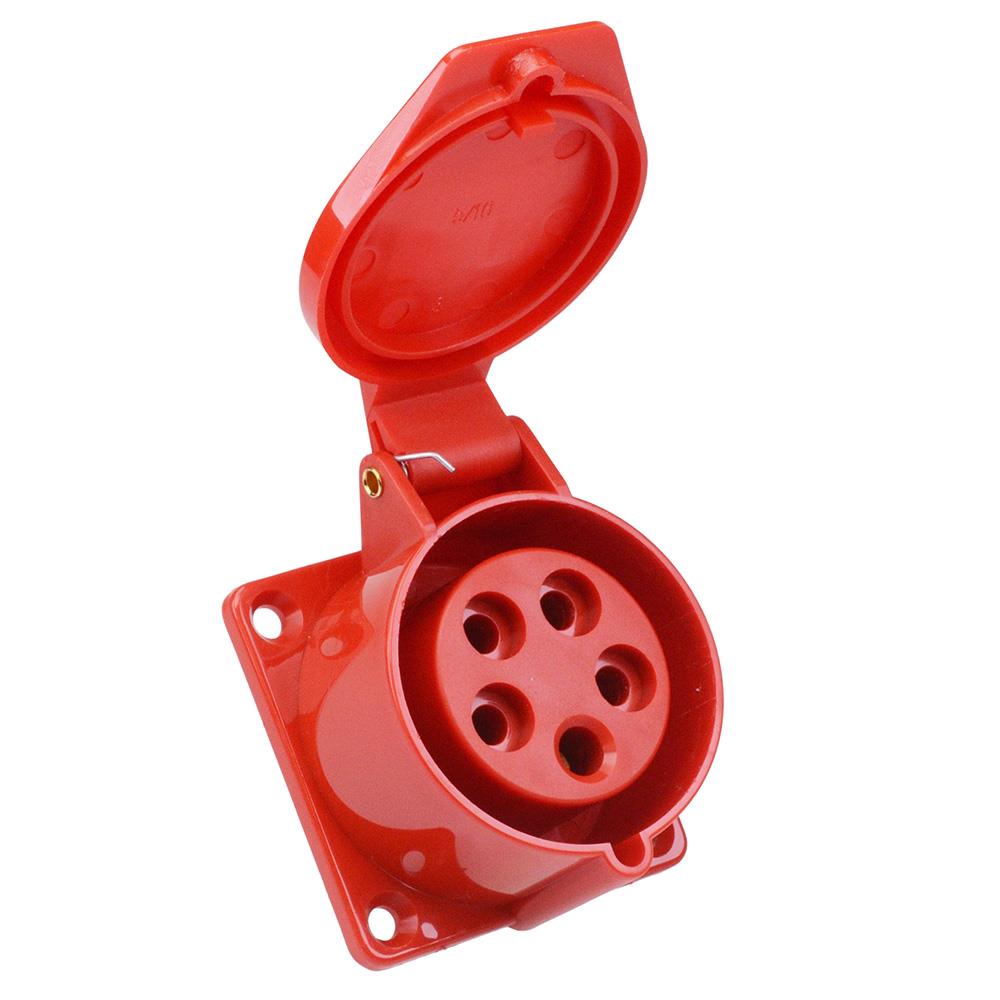

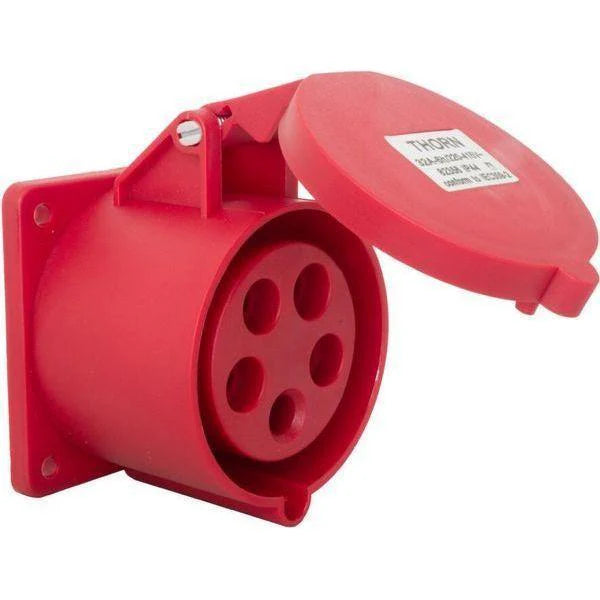

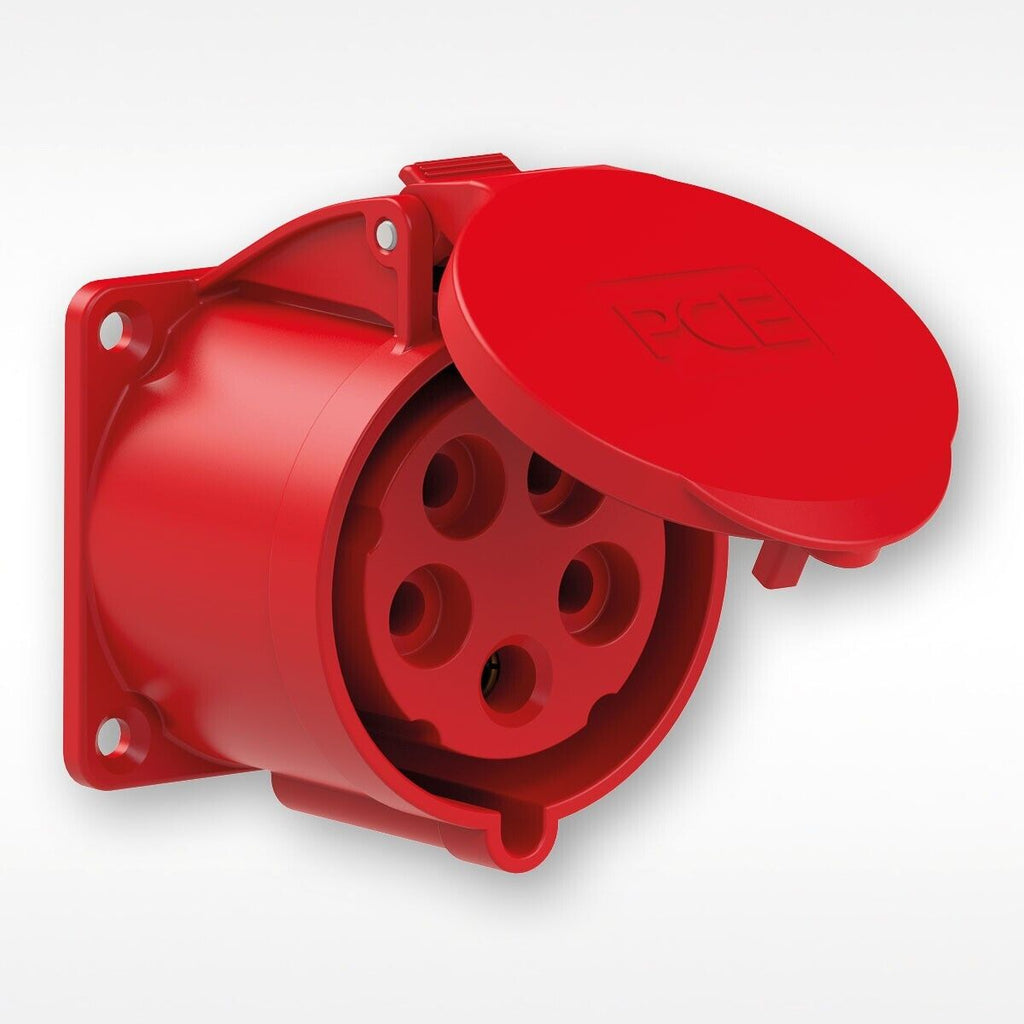

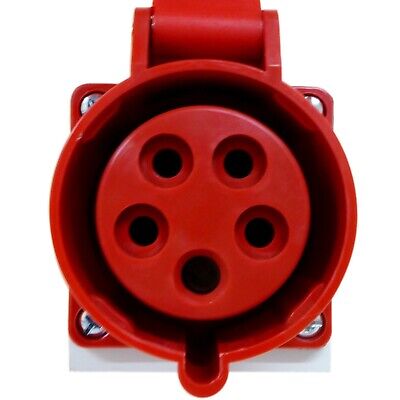

The 16A 5-Pin Panel Mount Industrial Female Socket is a space-efficient, flush-mounted power outlet designed for secure integration into electrical panels, control boards, and machinery enclosures. With a 3P+N+E (Three Phase + Neutral + Earth) configuration and an IP44 protection rating, this female socket is ideal for light-duty three-phase applications requiring a stable and fixed connection point.

Constructed with a flame-retardant thermoplastic body and screw-type terminals, this socket ensures safe, reliable connections in industrial and commercial environments. It complies with IEC 60309 standards and is suitable for indoor or sheltered outdoor use.

Specifications:

• Rated Current: 16 Amps

• Voltage: 380–415V AC

• Pins: 5 (3 Phase + Neutral + Earth)

• Socket Type: Female (Panel Mount / Flush)

• Configuration: 3P+N+E

• Mounting Type: Flush mount (panel cut-out)

• Protection Class: IP44 (Splash- and dust-resistant)

• Material: Flame-retardant polyamide housing

• Terminal Type: Screw terminals

• Compliance: IEC 60309

• Operating Temperature: -25°C to +80°C

Features:

• Panel-mounted female socket for compact, fixed installation

• IP44-rated protection for indoor and semi-outdoor use

• 5-pin design supports full three-phase wiring with neutral

• Flame-retardant construction ensures long-term reliability

• Ideal for switchboards, machines, and control cabinets
