LW26-63A Rotary Cam Changeover Switch – 4-Position (0-1-2-3), 63 A, Up to 440 V AC
  • LW26-63A Rotary Cam Changeover Switch – 4-Position (0-1-2-3), 63 A, Up to 440 V AC
  • LW26-63A Rotary Cam Changeover Switch – 4-Position (0-1-2-3), 63 A, Up to 440 V AC
  • LW26-63A Rotary Cam Changeover Switch – 4-Position (0-1-2-3), 63 A, Up to 440 V AC
  • LW26-63A Rotary Cam Changeover Switch – 4-Position (0-1-2-3), 63 A, Up to 440 V AC
  • LW26-63A Rotary Cam Changeover Switch – 4-Position (0-1-2-3), 63 A, Up to 440 V AC
  • LW26-63A Rotary Cam Changeover Switch – 4-Position (0-1-2-3), 63 A, Up to 440 V AC
  • LW26-63A Rotary Cam Changeover Switch – 4-Position (0-1-2-3), 63 A, Up to 440 V AC
  • LW26-63A Rotary Cam Changeover Switch – 4-Position (0-1-2-3), 63 A, Up to 440 V AC
  • LW26-63A Rotary Cam Changeover Switch – 4-Position (0-1-2-3), 63 A, Up to 440 V AC
  • LW26-63A Rotary Cam Changeover Switch – 4-Position (0-1-2-3), 63 A, Up to 440 V AC
LW26-63A Rotary Cam Changeover Switch – 4-Position (0-1-2-3), 63 A, Up to 440 V AC

LW26-63A Rotary Cam Changeover Switch – 4-Position (0-1-2-3), 63 A, Up to 440 V AC

GH₵200.00 GH₵250.00

Overview

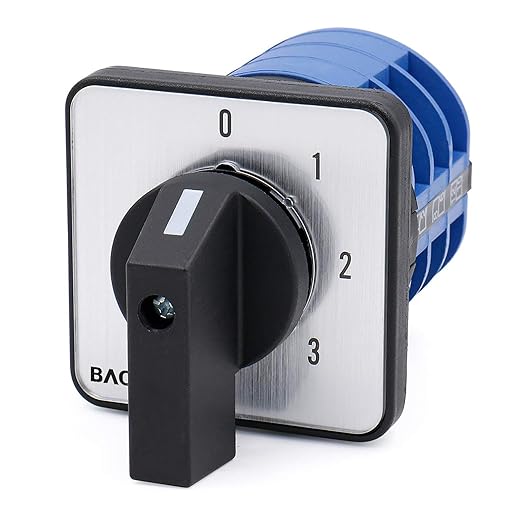

The LW26-63A Rotary Cam Changeover Switch is a robust selector switch ideal for manual control in industrial and electrical systems. Featuring four positions—0 (Off), 1, 2, and 3—this high-capacity switch offers flexible circuit rerouting and reliable operation for motors, control circuits, and more.

Technical Specifications

Specification Details
Current Rating (Ith) 63 A
Voltage Rating Up to 440 V AC (max. 690 V insulation)
Number of Positions 4 positions: 0-1-2-3
Series LW26 rotary cam switch series
Standards Compliance GB/T 14048.3, GB/T 14048.5, IEC 60947-3, EN 60947-5-1
Application Manual circuit switching, motor start/reversal, switchgear, welding machines, control circuits

Key Benefits

  • High Current Capacity – Rated at 63 A, this switch is engineered to handle robust industrial loads with confidence.

  • Multi-Position Versatility – Four selectable states give you control flexibility for switching between different operational modes.

  • Durable Build & Compliance – Manufactured to meet rigorous safety and performance standards—ensuring dependable service in demanding environments.

  • Wide Usage Scope – Ideal for power control panels, testing systems, motor control setups, and welding gear applications.
