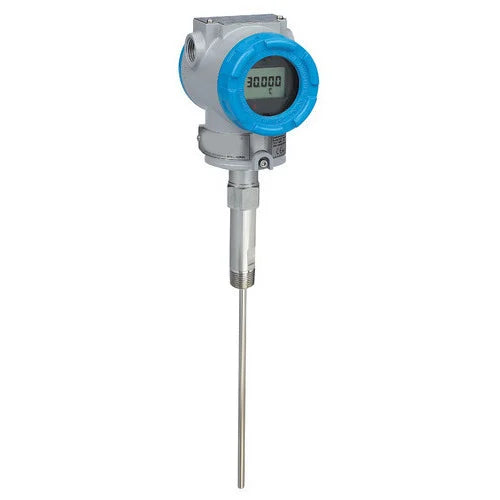

LFW20 Armored Temperature Transmitter – 4–20 mA, 0.25% FS, 0–100 °C, G1/2, 200 mm Probe with Display
LFW20 Armored Temperature Transmitter – 4–20 mA, 0.25% FS, 0–100 °C, G1/2, 200 mm Probe with Display
GH₵2,550.00
GH₵3,010.00
Pickup currently not available
Product Overview
The LFW20 Armored Temperature Transmitter offers industrial-grade accuracy and robust construction for temperature monitoring in demanding environments. Equipped with a 200 mm stainless steel probe (G1/2 threaded), this transmitter provides a 4–20 mA signal and features a built-in display for direct reading.
Key Specifications
| Parameter | Details |
|---|---|
| Measurement Range | 0…100 °C (configurable up to –50…300 °C) |
| Output Signal | 4–20 mA (standard); optional 0–10 V, RS-485, PT100, PT1000 |
| Accuracy | ±0.25 % Full Scale (also available in ±0.5 %) |
| Probe & Housing | 304 stainless steel probe & die-cast aluminum housing |
| Threaded Connection | G1/2 (installation standard) |
| Probe Length | 200 mm, customizable |
| Power Supply | 15–35 V DC |
| Operating Conditions | –40…85 °C ambient; 0…95 % RH, non-condensing |
| Protection Rating | IP65 (after installation) |
| Additional Features | Reverse polarity and overvoltage protection; local display included |
What Sets This Transmitter Apart:
-
Enhanced Precision with Local Display: The integrated display offers immediate, on-site temperature readout, while the analog 4–20 mA output simplifies long-range monitoring.
-
Industrial Durability: Built with quality stainless steel and aluminum housing, it withstands corrosion and physical stress—ideal for petrochemical, HVAC, hydrology, and industrial environments.
-
Flexible Configuration: Supports multiple output types and temperature ranges—easily configurable to meet your application requirements.
-
Built-In Protection: Includes reverse-polarity and over-voltage safeguards, enhancing installation reliability.
