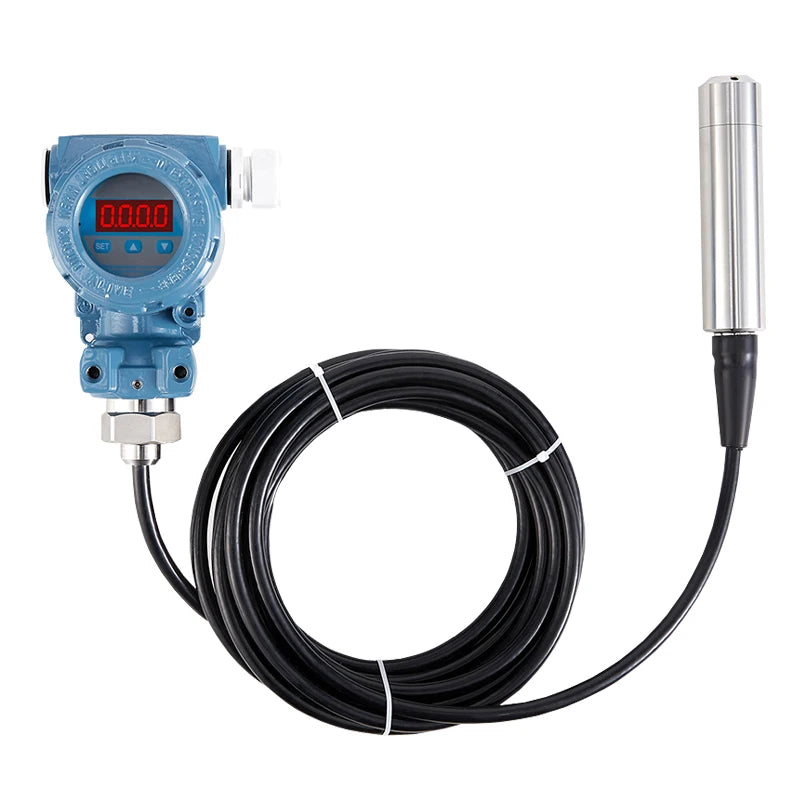

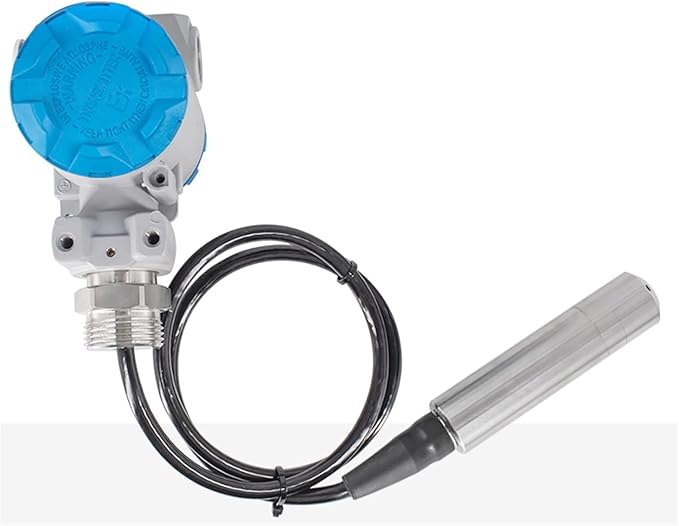

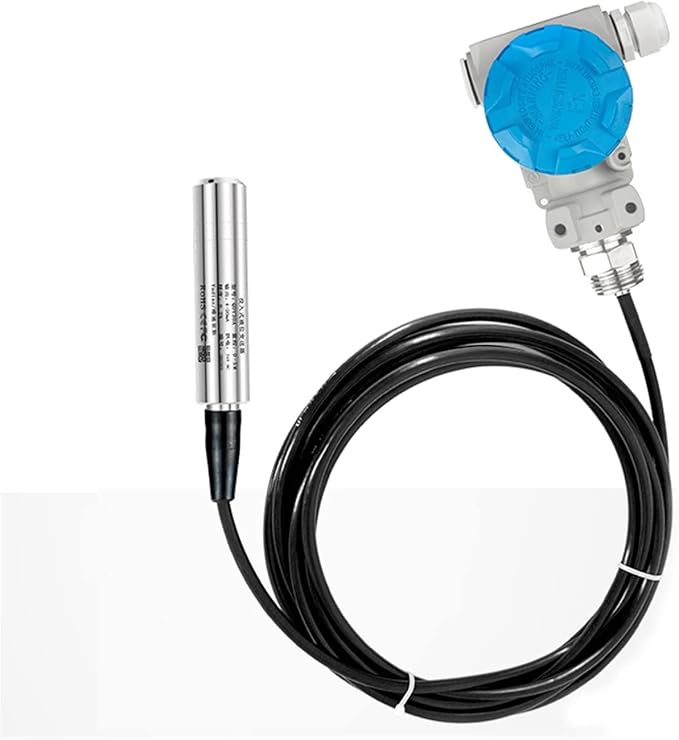

LFT3000 Throw-in Type Liquid Level Pressure Transmitter — 2-Wire | 4-20 mA | ±0.5 % F.S | 1 m Cable | No Display
  • LFT3000 Throw-in Type Liquid Level Pressure Transmitter — 2-Wire | 4-20 mA | ±0.5 % F.S | 1 m Cable | No Display
  • LFT3000 Throw-in Type Liquid Level Pressure Transmitter — 2-Wire | 4-20 mA | ±0.5 % F.S | 1 m Cable | No Display
  • LFT3000 Throw-in Type Liquid Level Pressure Transmitter — 2-Wire | 4-20 mA | ±0.5 % F.S | 1 m Cable | No Display
  • LFT3000 Throw-in Type Liquid Level Pressure Transmitter — 2-Wire | 4-20 mA | ±0.5 % F.S | 1 m Cable | No Display
  • LFT3000 Throw-in Type Liquid Level Pressure Transmitter — 2-Wire | 4-20 mA | ±0.5 % F.S | 1 m Cable | No Display
  • LFT3000 Throw-in Type Liquid Level Pressure Transmitter — 2-Wire | 4-20 mA | ±0.5 % F.S | 1 m Cable | No Display
  • LFT3000 Throw-in Type Liquid Level Pressure Transmitter — 2-Wire | 4-20 mA | ±0.5 % F.S | 1 m Cable | No Display
  • LFT3000 Throw-in Type Liquid Level Pressure Transmitter — 2-Wire | 4-20 mA | ±0.5 % F.S | 1 m Cable | No Display
  • LFT3000 Throw-in Type Liquid Level Pressure Transmitter — 2-Wire | 4-20 mA | ±0.5 % F.S | 1 m Cable | No Display
  • LFT3000 Throw-in Type Liquid Level Pressure Transmitter — 2-Wire | 4-20 mA | ±0.5 % F.S | 1 m Cable | No Display
  • LFT3000 Throw-in Type Liquid Level Pressure Transmitter — 2-Wire | 4-20 mA | ±0.5 % F.S | 1 m Cable | No Display
  • LFT3000 Throw-in Type Liquid Level Pressure Transmitter — 2-Wire | 4-20 mA | ±0.5 % F.S | 1 m Cable | No Display
LFT3000 Throw-in Type Liquid Level Pressure Transmitter — 2-Wire | 4-20 mA | ±0.5 % F.S | 1 m Cable | No Display

LFT3000 Throw-in Type Liquid Level Pressure Transmitter — 2-Wire | 4-20 mA | ±0.5 % F.S | 1 m Cable | No Display

GH₵2,950.00 GH₵3,500.00

Overview
Meet the LFT3000 Throw-in Type Liquid Level Pressure Transmitter, designed for accurate, reliable liquid level monitoring using hydrostatic pressure measurement. Equipped with a compact stainless steel, throw-in probe, this transmitter outputs a standard 4–20 mA signal through a 2-wire configuration—ideal for seamless integration into industrial and municipal water systems, petroleum, and chemical applications.

Core Features

  • Precision Sensing: Utilizes a diffusion oil-filled silicon core with ±0.5 % F.S. accuracy for dependable performance.

  • Robust, Submersible Design: Corrosion- and wear-resistant stainless steel with IP68-level protection—built to withstand harsh liquid environments.

  • Temperature Compensation & Reliability: Equipped with built-in temperature compensation for consistent accuracy under varying conditions.

  • Rigid Cable with Throw-In Installation: Includes a 1 m waterproof cable, allowing for flexible mounting and easy deployment.

  • Wide Application Scope: Designed for measuring liquid levels in water supply networks, wastewater treatment, industrial tanks, hydrology, and more.

Technical Specifications

Specification Details
Model LFT3000
Type Throw-in submersible liquid level pressure transmitter
Output Signal 4–20 mA, 2-wire
Accuracy ±0.5 % of Full Scale (F.S.)
Measurement Range Up to 200 mH₂O gauge pressure
Protection IP68 (submersible)
Temperature Compensation Built-in
Cable Length 1 m (fixed)



Why Choose LFT3000?
This transmitter blends precision with resilience. Its simplicity via a 4–20 mA 2-wire setup ensures compatibility with most monitoring systems. Designed to endure harsh, submerged environments, it's the go-to choice for industrial-level liquid-level measurement without the need for elaborate display modules.

Installation Notes
Simply immerse the transmitter in the liquid—no float or external mounting hardware needed. The 1 m cable offers flexibility while ensuring a water-tight seal.

Applications

  • Urban and industrial water tanks

  • Sewage and wastewater level monitoring

  • Chemical and petroleum liquid level control

  • Hydrological and environmental fluid measurements
