Detailed Description

Overview

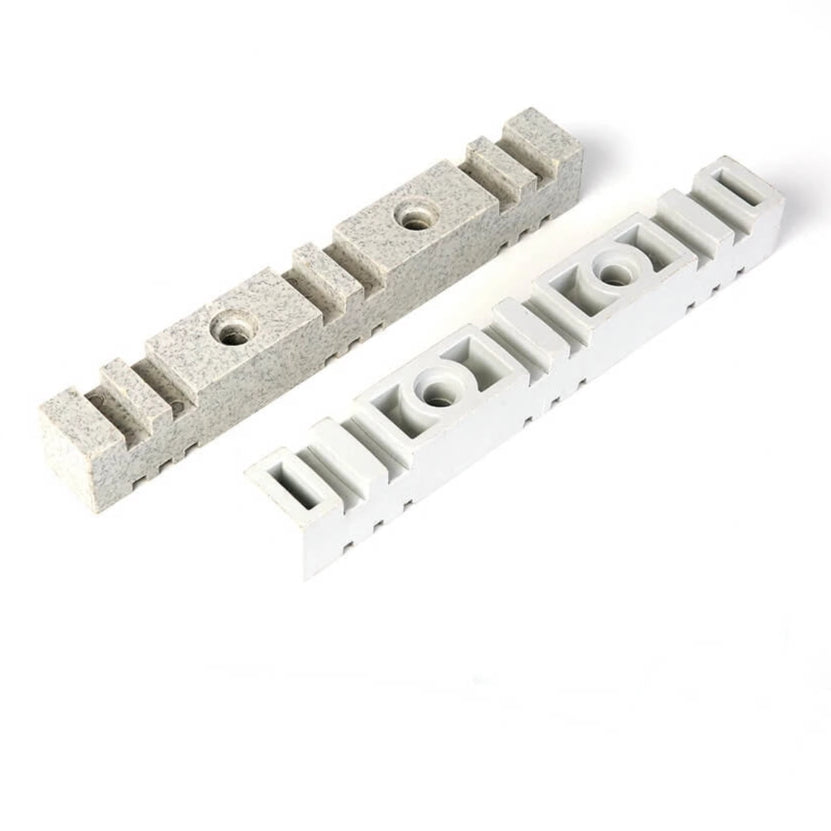

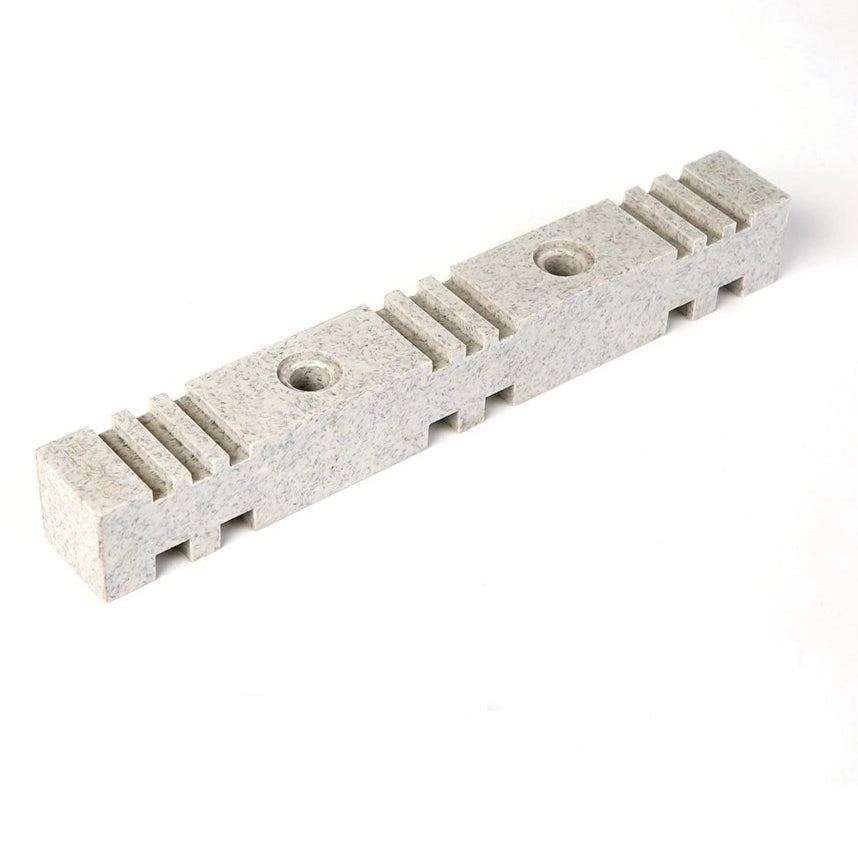

The EL-270 Busbar Support Clamp stands as a premium insulating solution crafted specifically for busbar mounting in low-voltage distribution systems. Engineered from high-strength DMC (Dough Molding Compound) and SMC (Sheet Molding Compound), this support clamp delivers dependable mechanical stability and exceptional electrical insulation for switchgear, inverters, distribution boxes, and more—while maintaining a sleek, white finish.

Key Features & Benefits

• Durable and Safe Materials
  Formed using DMC/SMC composites, the clamp offers outstanding insulating properties, minimal shrinkage, and reliable flame resistance (V0 rating)—ensuring safe performance.



• Ideal Dimensions for Installation
  Measures precisely 270 mm (length) × 35 mm (height) × 35 mm (width), making it ideal for horizontal mounting in compact electrical panels.



• High Mechanical Resilience
  Designed with a tensile strength of approximately 600 lbs, this clamp ensures stable support for copper busbars under demanding conditions.



• Wide Temperature Range
  Reliable across extreme environments, functioning between –40 °C and +140 °C—ensuring long-lasting operation.



• Excellent Insulation & Voltage Rating
  Rated up to 660 V for low-voltage applications, offering safe and reliable insulation in power distribution systems.



• Compliance & Customization
  CE, RoHS, SGS, and REACH certified, with customization options for colors (white, marble, grey), inserts (brass or iron), and OEM branding.



Typical Applications
This clamp excels in securing busbars in low-voltage panels, switchgear, inverters, power distribution cabinets, and frequency converters—delivering both structural integrity and electrical safety.

Why Choose This Support Clamp?

• Reliable & Robust: High-strength polymer construction ensures resilient and safe performance.

• Precision Engineered: Compact dimensions and finish make it panel-ready and easy to install.

• Safety First: Flame-retardant materials and broad temp resistance offer operational confidence across environments.

• Tailored to Needs: Customizable color, inserts, and branding ensure seamless integration into project-specific setups.
