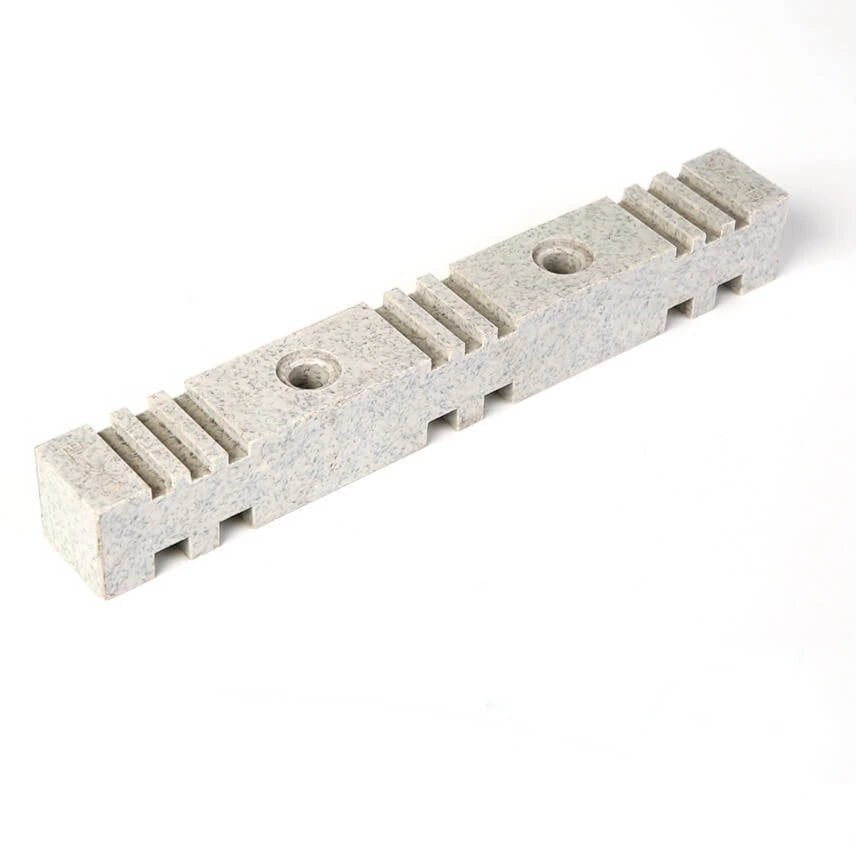

EL-170 DMC/SMC Busbar Insulator Support – Rated 660 V, High-Strength Electrical Clamp
GH₵25.00
GH₵30.00
Pickup currently not available
Detailed Description
Overview
The EL-170 Busbar Insulator Support, crafted from durable Sheet Molding Compound (SMC) and Dough Molding Compound (DMC), offers robust insulation and mechanical support for copper busbars in switchgear and distribution systems.
Key Features & Benefits
-
Material Excellence: Made via hot-pressed SMC and BMC (a variant of DMC), delivering excellent electrical insulation, high tensile strength, and flame-retardant (V0) performance.
-
Reliable Voltage Handling: Rated for up to 660 V, with extended product lines capable of supporting even higher voltages.
-
Mechanical Durability: Withstands temperatures from –40 °C to +140 °C, demonstrating resistance to heat, shrinkage, moisture, and fire.
-
Solid Construction: Offers tensile strength up to 600 lbs, ensuring stable support for busbar assemblies under stress.
-
Certifications & Customization: CE, RoHS, UL, and SGS certified; available in configurable sizes (EL-60 to EL-800), tailored colors, and with brass or zinc-coated steel inserts.
-
Wide Application Range: Perfect for securing busbars in low-voltage panels, switchgear, inverters, distribution boards, and renewable energy systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | EL-170 |
| Material | SMC / DMC (SMC/BMC) |
| Voltage Rating | Up to 660 V (models extend up to 4500 V+) |
| Temperature Range | –40 °C to +140 °C |
| Tensile Strength | ~600 lbs (~12 N/m) |
| Flame Rating | V0 (Flame retardant) |
| Certifications | CE, RoHS, UL, SGS, REACH (depending on model) |
| Custom Features | Sizes, colors, inserts (brass/steel), OEM logos |
| Applications | Switchgear, distribution cabinets, inverters |
