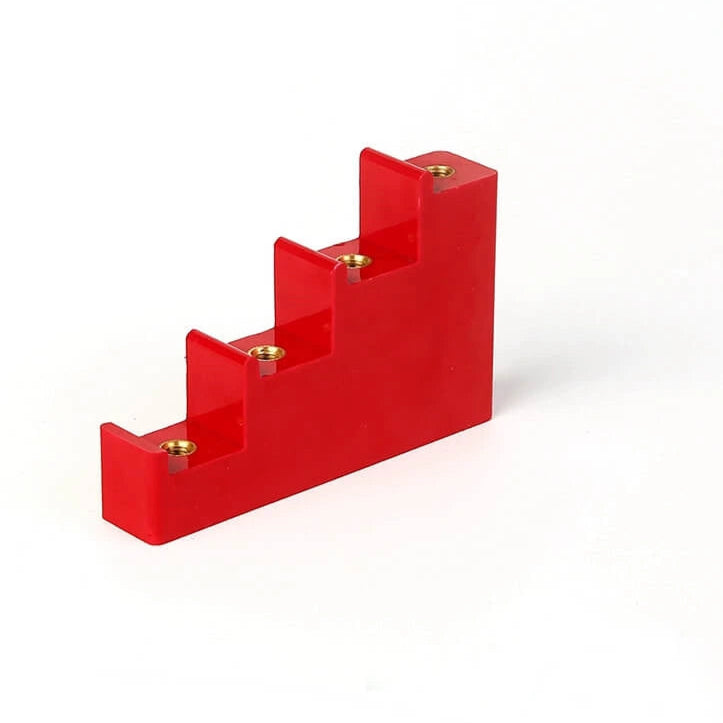

CT4-20 Red Epoxy Resin Step-Type Insulator Support – CT Series Busbar Spacer
GH₵30.00
GH₵40.00
Pickup currently not available
Overview
The CT4-20 is a robust step-type busbar insulator crafted from epoxy resin (BMC/DMC), designed to securely support and insulate busbars at varying heights within low-voltage distribution cabinets, inverters, and switchgear panels.
Key Features
-
Reliable Insulation & Support: Tailored to hold busbars with different configurations in place while maintaining electrical isolation.
- Durable Material: Made from high-strength epoxy resin like Bulk Molding Compound (BMC) or Sheet Molding Compound (DMC) for superior mechanical and thermal properties.
-
Wide Temperature Range: Operates consistently in environments from –40 °C to +140 °C, with V0-rated flame retardancy.
-
Customizable Inserts and Finishes: Threaded inserts available in brass or zinc-coated steel; available in red or custom colors.
-
Certified Quality: Backed by CE, RoHS, ELV, REACH, and SGS certifications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CT4-20 |
| Material | BMC / DMC (Epoxy Resin) |
| Voltage Rating | 660 V – 4500 V (Low-Voltage Systems) |
| Length | ~100 mm |
| Height | ~60 mm |
| Operating Temperature | –40 °C to +140 °C |
| Flame Retardancy | V0 Rated |
| Insert Options | Brass or Zinc-coated Steel |
| Color | Standard Red (custom colors available) |
| Certifications | CE, RoHS, ELV, REACH, SGS |
| MOQ | 2 pieces |
Applications & Benefits
-
Ideal For: Low-voltage power distribution cabinets, frequency converters, inverters, and electrical switchgear.
-
Multilevel Support: Step design allows organized, space-efficient busbar arrangements, improving modularity and assembly neatness.
-
Enhanced Safety: High dielectric strength and flame-retardant design reduce electrical hazards and component failure risks.
-
Flexible Integration: Customizable colors and insert material suit diverse installation needs and aesthetic standards.
