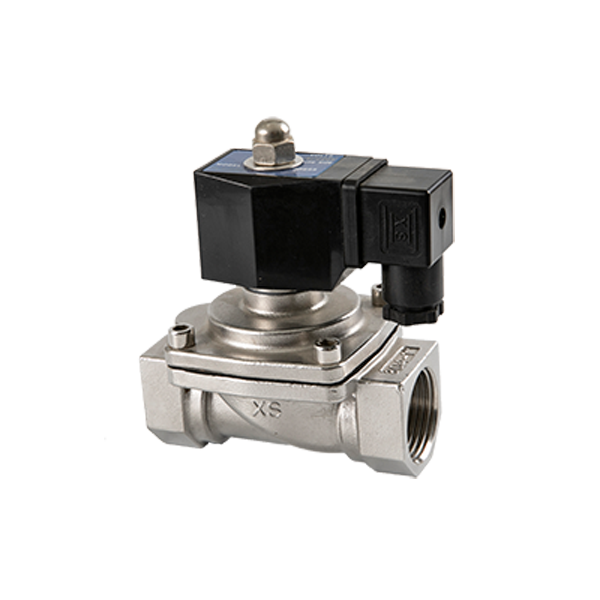

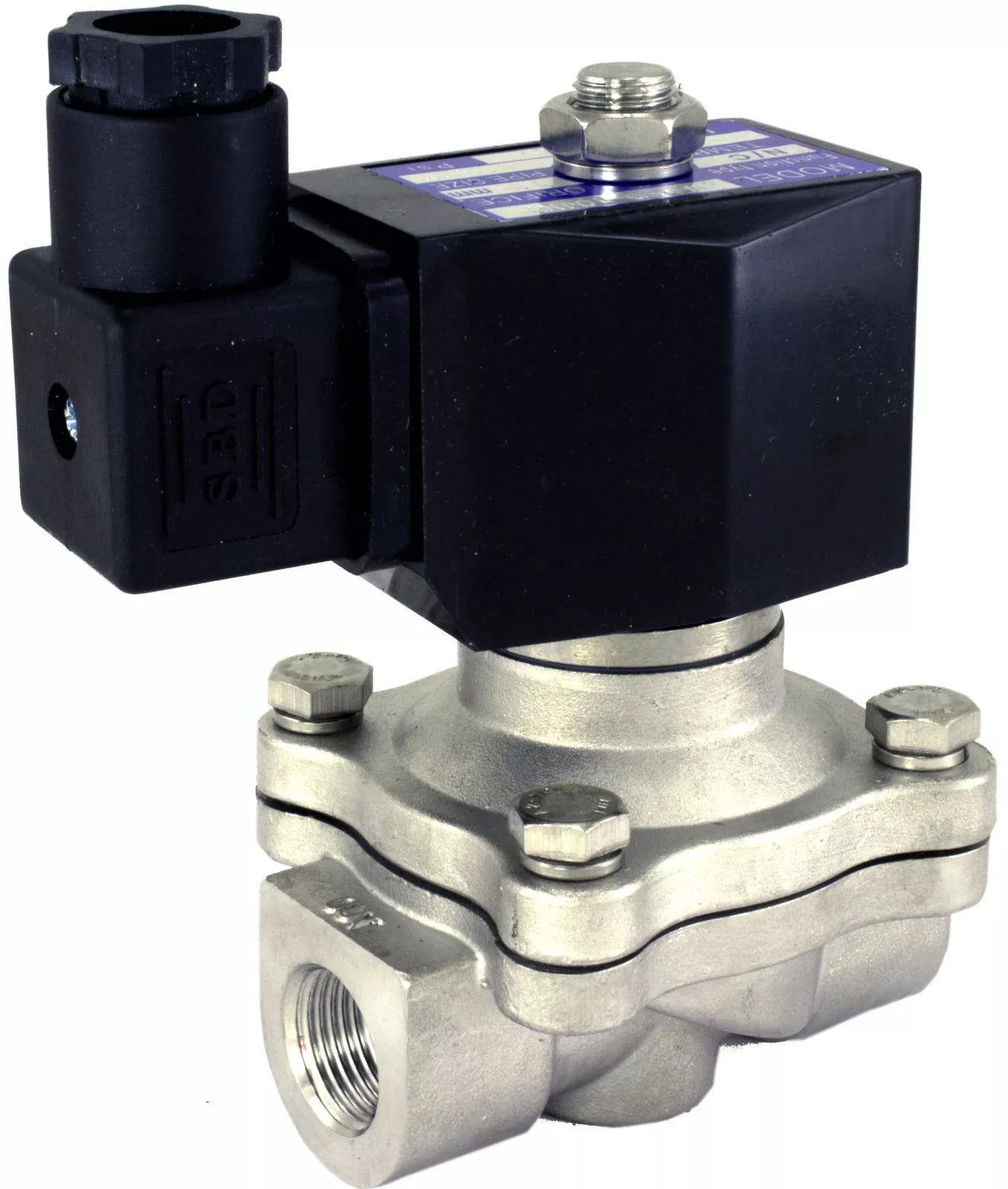

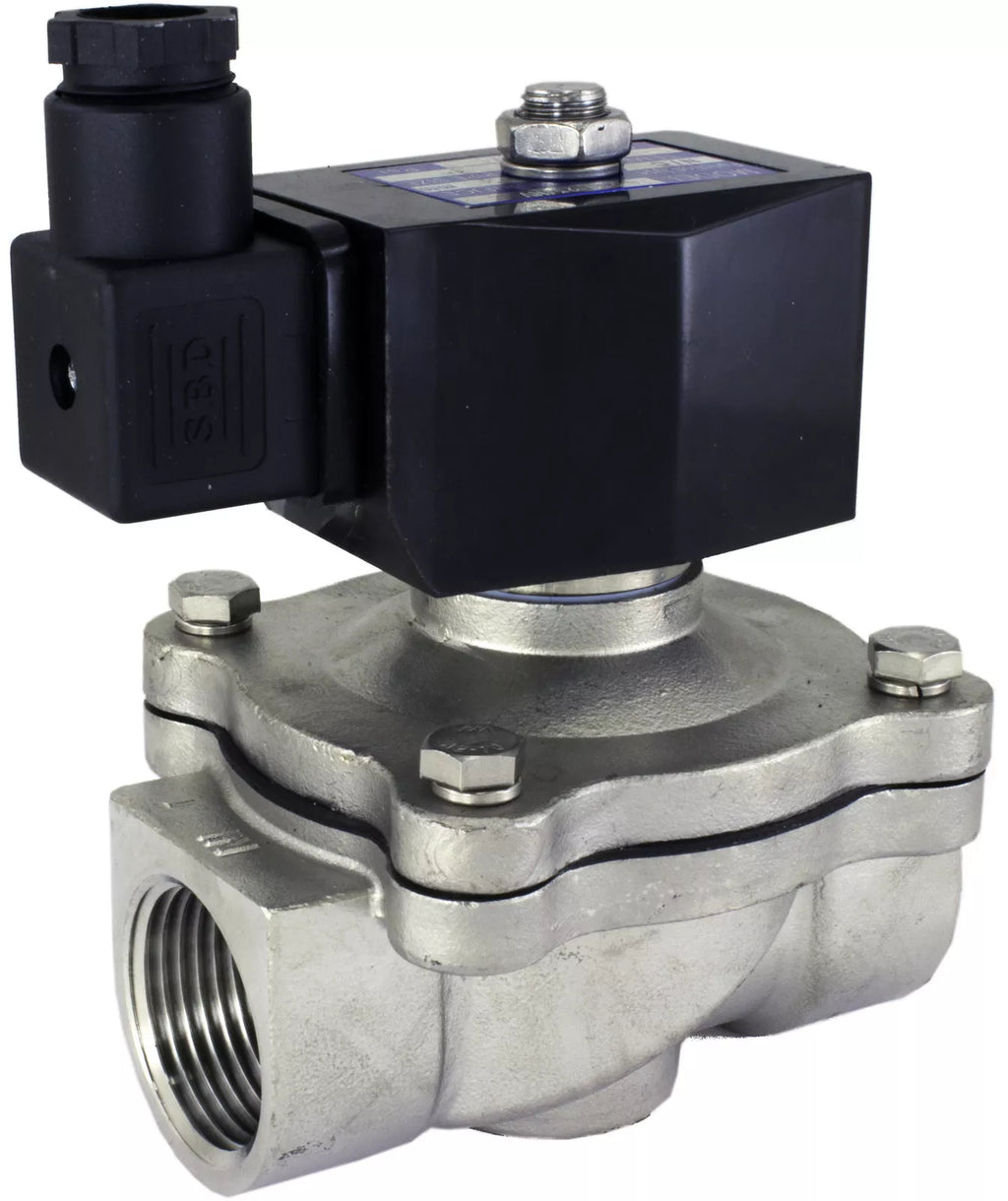

Bandon Stainless Steel 2/2 Way Piston Solenoid Valve – Model 7010 250.7241, AC 220V, NC, G1/2
GH₵1,650.00
GH₵2,000.00
Pickup currently not available
Product Overview
The Bandon 7010 250.7241 is a precision-engineered 2/2 way piston-type solenoid valve made from high-grade stainless steel for superior corrosion resistance and durability. Operating in a normally closed (NC) configuration, it is designed to handle higher pressures with exceptional reliability. Suitable for water, air, and non-corrosive fluids, it delivers stable performance in demanding industrial applications.
Key Features
-
Stainless steel body for maximum corrosion resistance
-
Piston-type 2/2 way operation for precise flow control
-
Normally Closed (NC) safety operation
-
Handles media pressure up to 5.0 MPa
-
NBR seal for temperatures up to +80 °C
-
IP65 rating for dust and water protection
-
DIN plug electrical connection for quick, secure wiring
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 7010 250.7241 |
| Body Material | Stainless Steel |
| Type | 2/2 Way Piston |
| Operation | Normally Closed (NC) |
| Port Size | G1/2 |
| Media Pressure | 0.03 – 5.0 MPa (max. 1 MPa reference) |
| Flow Rate (Kv) | 1.7 m³/h |
| Seal Material | NBR |
| Max Fluid Temp | +80 °C |
| Fluid Viscosity | ≤ 21 mm²/s |
| Ingress Protection | IP65 |
| Electrical Connection | DIN Plug |
| Coil Voltage | AC 220V |
Applications
-
High-pressure fluid systems
-
Industrial automation
-
Water and air control systems
-
Non-corrosive fluid handling
