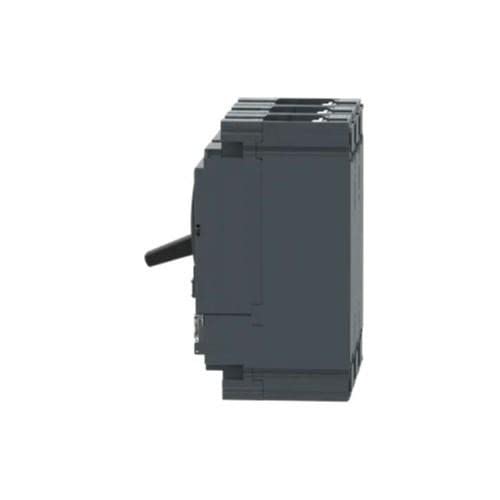

600A 3-Pole MCCB – Schneider Electric EasyPact CVS630F LV563306, TM-D Trip Unit, 36kA Breaking Capacity @ 415V AC
GH₵11,000.00
GH₵12,500.00
Pickup currently not available
Short Description:
Heavy-duty 3-pole molded case circuit breaker rated at 600A with a 36kA breaking capacity at 415V AC. Equipped with a fixed thermal-magnetic trip unit for reliable protection in high-power electrical distribution systems.
Full Product Description:
The Schneider Electric LV563306 is a high-capacity 3-pole MCCB from the EasyPact CVS630F series, engineered for dependable operation in commercial and industrial low-voltage systems. With a rated current of 600A, a fixed thermal-magnetic (TM-D) trip unit, and a 36kA breaking capacity at 415V AC, this MCCB delivers robust protection against overloads and short circuits.
Classified as 3P 3D (three protected poles), the CVS630F MCCB is designed for fixed mounting in main distribution panels, large-scale machinery control, and infrastructure power systems. Fully compliant with IEC 60947-2, it ensures electrical safety, system continuity, and ease of installation.
Technical Specifications:
| Attribute | Specification |
|---|---|
| Product Code | LV563306 |
| Series | EasyPact CVS630F |
| Rated Current (In) | 600A |
| Frame Size | 630A |
| Number of Poles | 3P (Three-Pole, 3D) |
| Trip Unit Type | Fixed Thermal-Magnetic (TM-D) |
| Breaking Capacity | 36kA @ 415V AC |
| Rated Insulation Voltage (Ui) | 750V |
| Mounting Type | Fixed |
| Utilization Category | Category A |
| Compliance Standard | IEC 60947-2 |
| Protection Functions | Overload, Short Circuit |
Applications:
✔ Main power distribution systems
✔ Generator and transformer output protection
✔ Large-scale industrial machinery
✔ Critical infrastructure switchgear
