Product Description:

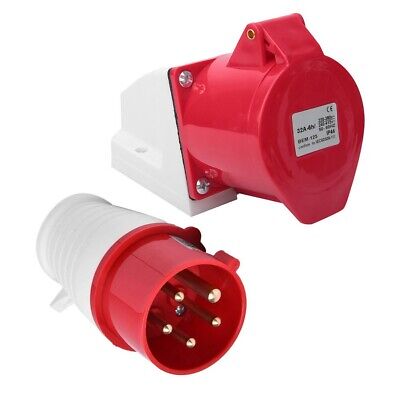

Secure high-capacity electrical connections with the 32A 5-Pin Wall-Mount Industrial Plug & Socket (Male & Female), engineered for 400V three-phase systems with neutral and earth (3P+N+E). The IP44 splashproof rating makes this unit suitable for indoor and semi-outdoor environments exposed to dust or water splashes.

Perfect for fixed power installations on factory walls, equipment housings, distribution boards, or temporary site panels, this wall-mount solution combines ease of access with industrial-grade durability.

Built with a rugged thermoplastic enclosure and nickel-plated brass contacts, it provides a long-lasting, corrosion-resistant connection in challenging environments.

Key Features:

• Rated Current: 32 Amps

• Voltage: 400V AC

• Poles: 5 (3P+N+E – Three Phase + Neutral + Earth)

• Frequency: 50/60Hz

• Mounting Type: Wall-Mount (Surface-Mounted)

• Ingress Protection: IP44 – Splashproof

• Connection Method: Screw terminals

• Cable Entry: Rear or side knockout ports

• Housing Material: Flame-retardant, impact-resistant thermoplastic

• Contact Material: Nickel-plated brass

• Color Code: Red (standard for 400V – IEC 60309)

• Operating Temperature: -25°C to +80°C

• Standard Compliance: IEC 60309-1 & IEC 60309-2

Available Options:

• ✅ 32A 5-Pin Wall-Mount Male Plug

• ✅ 32A 5-Pin Wall-Mount Female Socket
  (Choose type before adding to cart.)

Applications:

• Permanent industrial power supply

• Factory or workshop wall outlets

• Generator connection panels

• Mobile power distribution boxes

• Commercial kitchens and cold rooms

• Outdoor jobsite power terminals

What’s Included:

• 1x 32A 5-Pin Wall-Mount Plug or Socket (IP44 Rated)

• 1x Gland & mounting kit (may vary by model)

• 1x Installation Instructions
