Description:

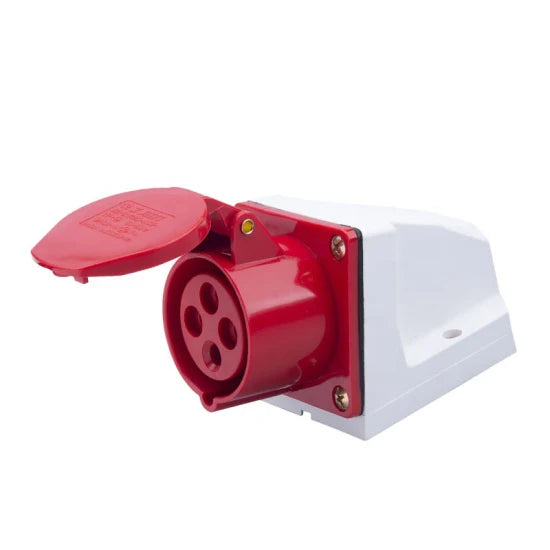

The 16A 4-Pin Wall Mount Industrial Socket is a fixed industrial power outlet designed for safe and reliable three-phase connections in light-duty environments. Featuring a 3P+E (Three Phase + Earth) configuration and compliant with IP44 protection, this socket is ideal for walls, enclosures, or machinery requiring secure power input.

Constructed from flame-retardant, high-impact plastic, it provides a stable and weather-resistant connection point for small machines, tools, or distribution boards. Its screw-terminal design allows for fast installation and long-term performance.

Specifications:

• Rated Current: 16 Amps

• Voltage: 380–415V AC

• Pins: 4 (3P + E)

• Mounting Type: Wall mount (fixed installation)

• Protection Class: IP44 (Splash-proof & dust-resistant)

• Material: Industrial-grade plastic housing

• Terminal Type: Screw-type terminal blocks

• Operating Temperature: -25°C to +80°C

• Standard Compliance: IEC 60309

Features:

• Fixed wall-mounted design for permanent installations

• Durable body with high resistance to heat and impact

• IP44-rated protection for both indoor and semi-outdoor use

• Quick and secure wiring with screw terminals

• Ideal for garages, workshops, and control panels
