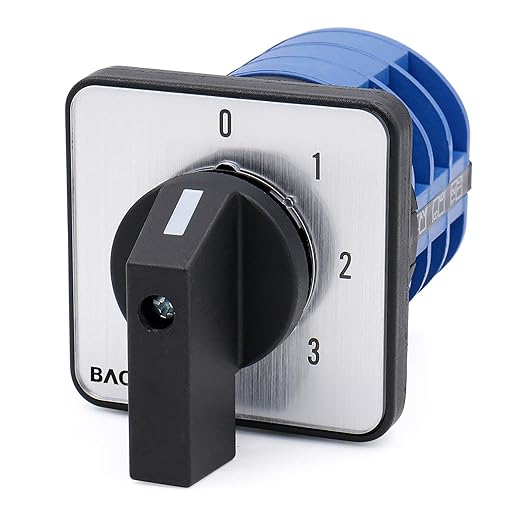

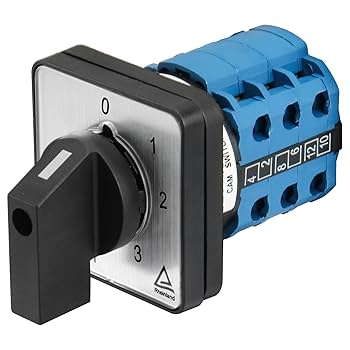

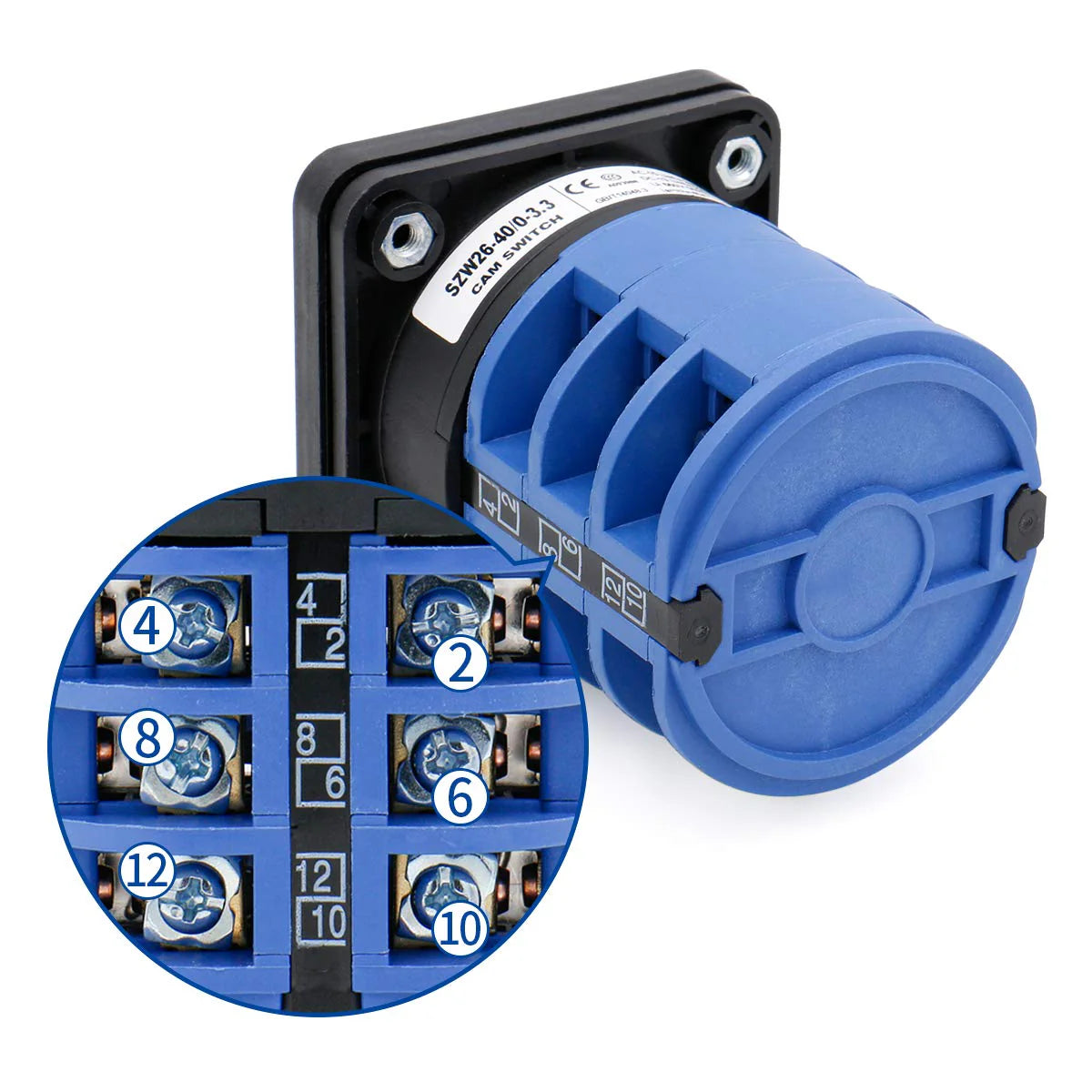

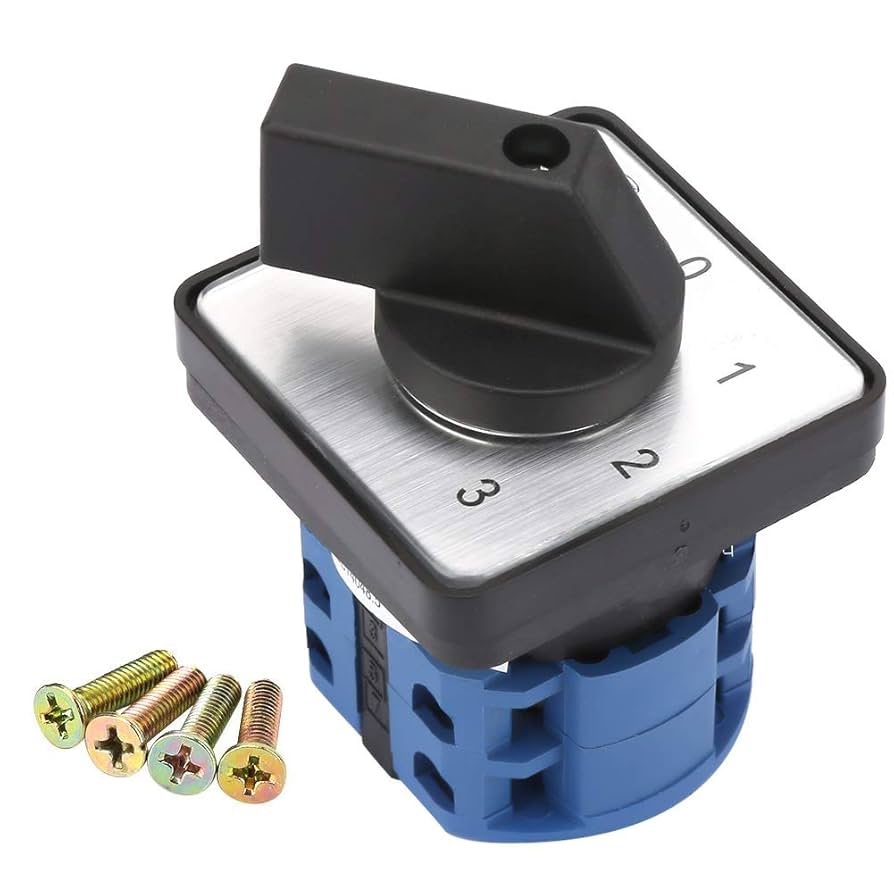

LW26-100A Rotary Cam Changeover Switch – 4-Position (0-1-2-3), 100 A, Up to 440 V AC

LW26-100A Rotary Cam Changeover Switch – 4-Position (0-1-2-3), 100 A, Up to 440 V AC

GH₵300.00 GH₵350.00

Overview
The LW26-100A Rotary Cam Changeover Switch is a heavy-duty selector switch engineered for robust and safe circuit control. Featuring a 4-position (0-1-2-3) configuration, it delivers precise, manual switching capabilities ideal for industrial applications such as motor control, power distribution, and test systems.

Key Specifications

Specification Details
Current Rating (Ith) 100
Insulation Voltage (Ui) Up to 690 V
Operating Voltage (Ue) Up to 440 V AC
Positions 4 fixed positions: 0 – OFF, 1, 2, 3
Series LW26 rotary cam switch series
Standards Compliance GB/T 14048.3, GB/T 14048.5, IEC 60947-3, IEC 60947-5-1
Applications Manual circuit control, motor starter selection, switchgear operation, test and measurement equipment

Why Choose the LW26-100A?

  • High Capacity: Supports up to 100 A, making it suitable for demanding industrial and commercial environments.

  • Multi-Position Control: Offers four selectable states for flexible circuit routing and operational sequences.

  • Robust Construction & Compliance: Meets international safety and performance standards, ensuring reliable operation under stress.

  • Versatile Applications: Ideal for motor control, power selection, control panels, and switching operations in industrial infrastructures.
