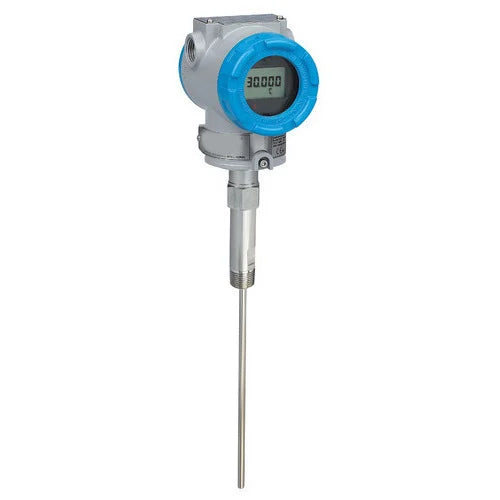

LFW20 Armored Temperature Transmitter with Display – 4–20 mA, ±0.25 % FS, 0–100 °C, G1/2, 300 mm Probe

LFW20 Armored Temperature Transmitter with Display – 4–20 mA, ±0.25 % FS, 0–100 °C, G1/2, 300 mm Probe

GH₵2,600.00 GH₵3,100.00

Overview


The LFW20 Armored Temperature Transmitter is designed for precision temperature measurement in industrial environments. Featuring a rugged stainless-steel probe (300 mm length) with G1/2 threaded installation and a clear local display, this device offers reliability and convenience in applications ranging from HVAC to petrochemical processes.



Key Specifications

Parameter Details
Measurement Range Factory default 0–100 °C; configurable up to –50…300 °C
Output Signal 4–20 mA standard; also supports 0–10 VDC, RS-485, PT100, PT1000
Accuracy High-precision ±0.25% Full Scale (also ±0.5% option)
Probe & Housing 304 stainless steel probe; die-cast aluminum housing
Threaded Connection Standard G1/2 installation
Probe Length 300 mm (customizable) — your specified variant
Power Supply Wide range 15–35 VDC
Operating Conditions –40…85 °C ambient; 0–95% RH, non-condensing
Protection Rating IP65, effective post-installation
Additional Features Include reverse-polarity and over-voltage protection, with local display

Why Choose the LFW20 (L=300) with Display?

  • On-the-Spot Readout: The integrated display ensures you can monitor the temperature directly at the installation point—no additional equipment needed.

  • Precision Matters: With ±0.25%FS accuracy, this transmitter delivers dependable measurements for critical process control.

  • Built for Tough Conditions: Premium stainless steel and IP65-rated housing make it resilient in industrial settings like HVAC, hydrology, heating, and chemical sectors.

  • Versatile Connectivity: Multiple output signal options accommodate diverse system integration needs.

  • Reliable and Safe: Reverse-polarity and over-voltage safeguards minimize installation errors and protect the device.
