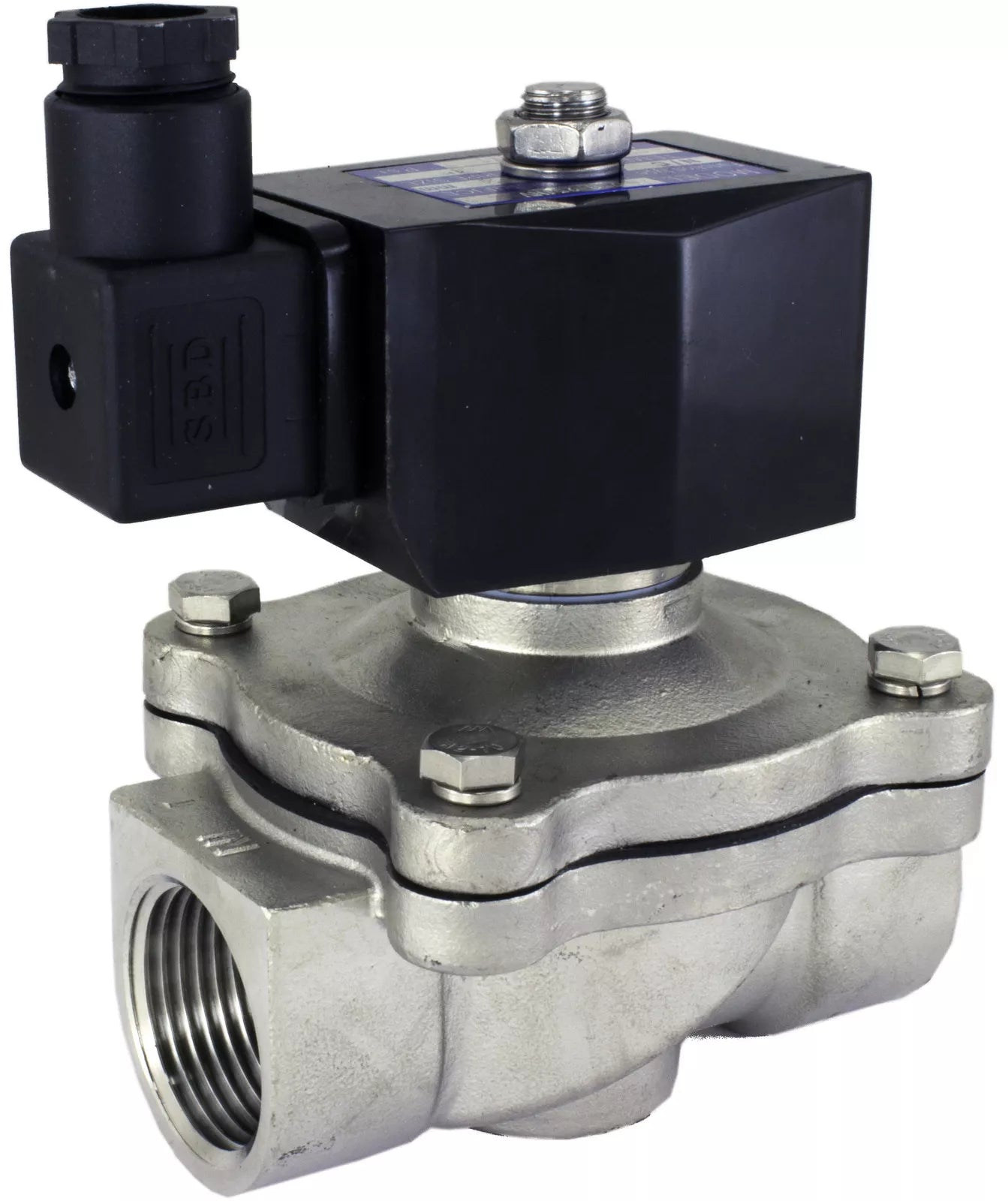

Bandon Stainless Steel 2/2 Way Pilot Diaphragm Solenoid Valve – Model 6337 300.7241, AC 220V, NC, G3/4
GH₵1,100.00
GH₵1,500.00
Pickup currently not available
Product Overview
The Bandon 6337 300.7241 is a durable and high-performance 2/2 way pilot diaphragm solenoid valve built for precise fluid control in industrial and commercial systems. Constructed with a solid Stainless Steel body and NBR sealing, this valve offers excellent corrosion resistance, reliable operation, and long service life. Operating in a normally closed (NC) configuration, it is ideal for water, air, and non-corrosive fluid applications.
Key Features
-
Heavy-duty brass construction for long-term reliability
-
2/2 way pilot diaphragm operation for efficient flow control
-
Normally Closed (NC) design for safety
-
NBR seal withstands temperatures up to +80 °C
-
IP65 protection for harsh environments
-
DIN plug electrical connection for quick installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6337 300.7241 |
| Body Material | Stainless Steel |
| Type | 2/2 Way Pilot Diaphragm |
| Operation | Normally Closed (NC) |
| Port Size | G3/4 |
| Media Pressure | 0.03 – 1.0 MPa (max. 1 MPa) |
| Flow Rate (Kv) | 7 m³/h |
| Seal Material | NBR |
| Max Fluid Temp | +80 °C |
| Fluid Viscosity | ≤ 21 mm²/s |
| Ingress Protection | IP65 |
| Electrical Connection | DIN Plug |
| Coil Voltage | AC 220V |
Applications
-
Industrial automation
-
Water and air flow control
-
Non-corrosive liquid handling
-
Process control systems
