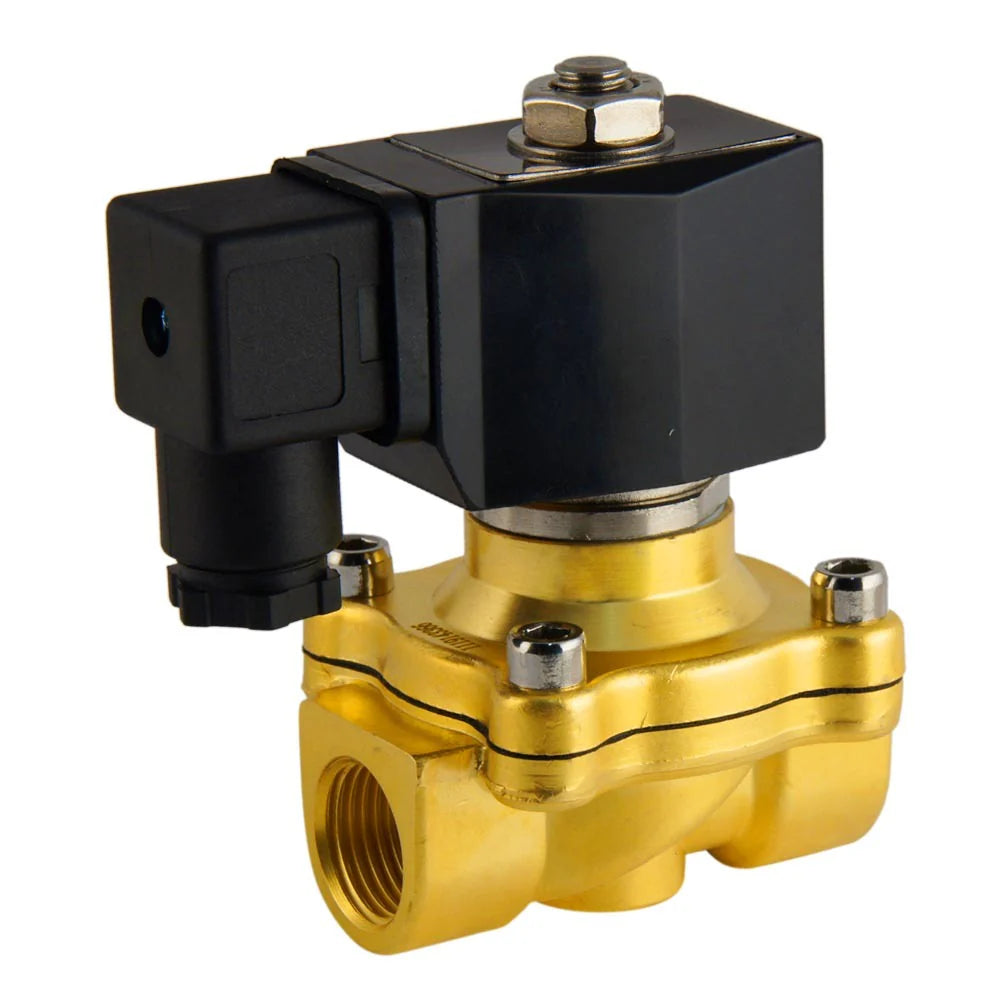

Bandon Brass 2/2 Way Piston Solenoid Valve – Model 7410 400.7231, AC 220V, NC, G1
GH₵1,750.00
GH₵2,000.00
Pickup currently not available
Product Overview
The Bandon 7410 400.7231 is a durable and efficient 2/2 way piston-type solenoid valve made from premium brass. Designed for precision fluid control, it operates in a normally closed (NC) configuration, providing fail-safe operation in automation and industrial fluid systems. With a high-pressure rating and NBR sealing, it is ideal for water, air, and non-corrosive media applications.
Key Features
-
Brass body for long service life and corrosion resistance
-
Piston-type 2/2 way configuration for reliable operation
-
Normally Closed (NC) for safety
-
Handles media pressure up to 4.0 MPa
-
NBR seal for temperatures up to +80 °C
-
IP65 ingress protection for dust and moisture resistance
-
DIN plug connection for quick, secure wiring
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 7410 400.7231 |
| Body Material | Brass |
| Type | 2/2 Way Piston |
| Operation | Normally Closed (NC) |
| Port Size | G1 |
| Media Pressure | 0.03 – 4.0 MPa (max. 1 MPa reference) |
| Flow Rate (Kv) | 1.7 m³/h |
| Seal Material | NBR |
| Max Fluid Temp | +80 °C |
| Fluid Viscosity | ≤ 21 mm²/s |
| Ingress Protection | IP65 |
| Electrical Connection | DIN Plug |
| Coil Voltage | AC 220V |
Applications
-
Industrial automation
-
High-pressure water and air control
-
Non-corrosive fluid management
-
Process control systems
